VNV35NV0413TR

Obsolete

STMicroelectronics

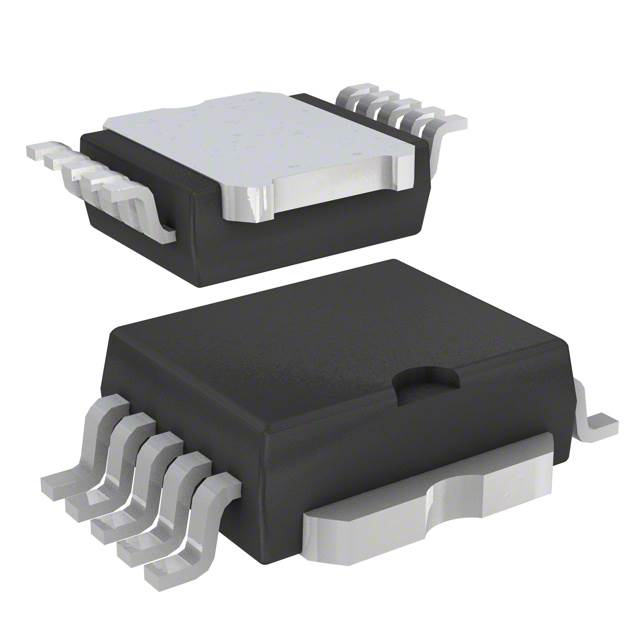

IC PWR DRIVER N-CHAN 1:1 PWRSO10

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

VNV35NV0413TR

Obsolete

STMicroelectronics

IC PWR DRIVER N-CHAN 1:1 PWRSO10

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	VNV35NV0413TR

Current - Output (Max) [Max]	30 A
Fault Protection	Over Temperature, Current Limiting (Fixed), Over Voltage
Input Type	Non-Inverting
Interface	On/Off
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Low Side
Output Type	N-Channel
Package / Case	PowerSO-10 Exposed Bottom Pad
Ratio - Input:Output [custom]	1:1
Rds On (Typ) [Max]	10 mOhm
Supplier Device Package	10-PowerSO
Switch Type	General Purpose
Voltage - Load	36 V
Voltage - Supply (Vcc/Vdd)	False

VNV35N07-E Series

OMNIFET II fully autoprotected Power MOSFET

Part	Fault Protection	Voltage - Load	Operating Temperature [Max]	Operating Temperature [Min]	Interface	Output Type	Current - Output (Max) [Max]	Package / Case	Output Configuration	Input Type	Rds On (Typ) [Max]	Switch Type	Supplier Device Package	Mounting Type	Ratio - Input:Output [custom]	Number of Outputs	Rds On (Typ)
STMicroelectronics VNV35NV04-E	Current Limiting (Fixed) Over Temperature Over Voltage	36 V	150 °C	-40 °C	On/Off	N-Channel	30 A	PowerSO-10 Exposed Bottom Pad	Low Side	Non-Inverting	10 mOhm	General Purpose	10-PowerSO	Surface Mount	1:1	1
STMicroelectronics VNV35N07-E	Current Limiting (Fixed) Over Temperature Over Voltage	55 V			On/Off	N-Channel	25 A	PowerSO-10 Exposed Bottom Pad	Low Side	Non-Inverting		General Purpose	10-PowerSO	Surface Mount	1:1	1	28 mOhm
STMicroelectronics VNV35NV0413TR	Current Limiting (Fixed) Over Temperature Over Voltage	36 V	150 °C	-40 °C	On/Off	N-Channel	30 A	PowerSO-10 Exposed Bottom Pad	Low Side	Non-Inverting	10 mOhm	General Purpose	10-PowerSO	Surface Mount	1:1	1
STMicroelectronics VNV35N07TR-E	Current Limiting (Fixed) Over Temperature Over Voltage	55 V			On/Off	N-Channel	25 A	PowerSO-10 Exposed Bottom Pad	Low Side	Non-Inverting		General Purpose	10-PowerSO	Surface Mount	1:1	1	28 mOhm
STMicroelectronics VNV35NV04TR-E	Current Limiting (Fixed) Over Temperature Over Voltage	36 V	150 °C	-40 °C	On/Off	N-Channel	30 A	PowerSO-10 Exposed Bottom Pad	Low Side	Non-Inverting	10 mOhm	General Purpose	10-PowerSO	Surface Mount	1:1	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

VNV35N07-E Series

The VNP35N07-E, VNB35N07-E and VNV35NV07-E are monolithic devices made using STMicroelectronics VIPower®technology, intended for replacement of standard Power MOSFETs in DC to 50 KHz applications.

Built-in thermal shutdown, linear current limitation and overvoltage clamp protect the chip in harsh environments.

Fault feedback can be detected by monitoring the voltage at the input pin.
