NC2EBD-DC6V

Active

Panasonic Electric Works

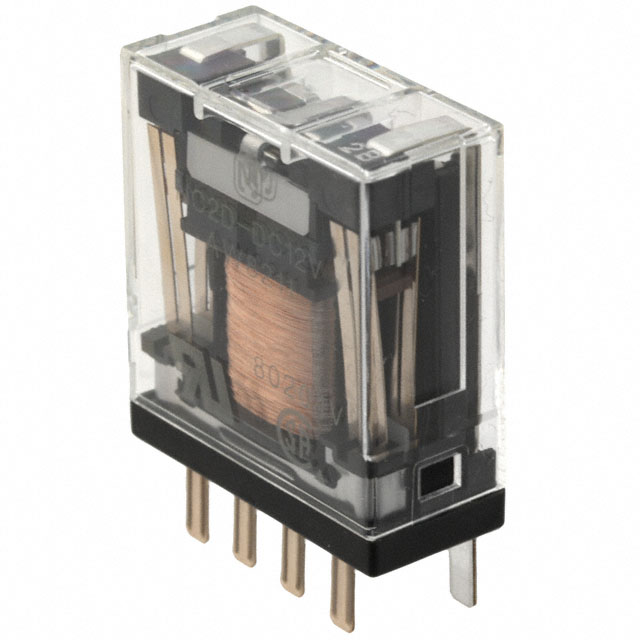

RELAY GEN PURPOSE DPDT 5A 6V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsGeneral Appl Guidelines Datasheet +2

NC2EBD-DC6V

Active

Panasonic Electric Works

RELAY GEN PURPOSE DPDT 5A 6V

Deep-Dive with AI

DocumentsGeneral Appl Guidelines Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	NC2EBD-DC6V

Approval Agency	CSA, UR
Coil Current	60 mA
Coil Resistance	100 Ohms
Coil Type	Non Latching
Contact Form	DPDT (2 Form C)
Contact Material	Silver Nickel (AgNi), Gold (Au)
Contact Rating (Current)	5 A
Load - Max Switching [Max]	1250 VA
Mounting Type	Socketable
Must Operate Voltage	4.8 VDC
Must Release Voltage	0.6 VDC
Operate Time	20 ms
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	10 ms
Seal Rating	Sealed - Fully
Switching Voltage	250 VAC
Termination Style	Plug In

NC2EB Series

Part	Mounting Type	Switching Voltage	Coil Resistance	Must Operate Voltage	Seal Rating	Release Time	Termination Style	Coil Type	Approval Agency	Must Release Voltage	Load - Max Switching [Max]	Contact Material	Coil Current	Operating Temperature [Min]	Operating Temperature [Max]	Contact Form	Coil Voltage	Operate Time	Contact Rating (Current)	Relay Type
Panasonic Electric Works NC2EBD-DC48V	Socketable	250 VAC	6.4 kOhms	38.4 VDC	Sealed - Fully	10 ms	Plug In	Non Latching	CSA UR	4.8 VDC	1250 VA	Gold (Au) Silver Nickel (AgNi)	7.5 mA	-40 °C	70 °C	DPDT (2 Form C)	48 VDC	20 ms	5 A	General Purpose
Panasonic Electric Works NC2EBD-JPL2-DC24V	Through Hole	250 VAC	720 Ohms	19.2 VDC	Sealed - Fully	10 ms	PC Pin	Latching Dual Coil	CSA UR		1250 VA	Gold (Au) Silver Nickel (AgNi)	33.3 mA	-40 °C	70 °C	DPDT (2 Form C)	24 VDC	20 ms	5 A	General Purpose
Panasonic Electric Works NC2EBD-JP-DC110V	Through Hole	250 VAC	13.5 kOhms	88 VDC	Sealed - Fully	10 ms	PC Pin	Non Latching	CSA UR	11 VDC	1250 VA	Gold (Au) Silver Nickel (AgNi)	8.2 mA	-40 °C	70 °C	DPDT (2 Form C)	110 VDC	20 ms	5 A	General Purpose
Panasonic Electric Works NC2EBD-P-DC24V	Through Hole	250 VAC	1.6 kOhms	19.2 VDC	Sealed - Fully	10 ms	PC Pin	Non Latching	CSA UR	2.4 VDC	1250 VA	Gold (Au) Silver Nickel (AgNi)	15 mA	-40 °C	70 °C	DPDT (2 Form C)	24 VDC	20 ms	5 A	General Purpose
Panasonic Electric Works NC2EBD-P-DC5V	Through Hole	250 VAC	69.4 Ohms	4 VDC	Sealed - Fully	10 ms	PC Pin	Non Latching	CSA UR	0.5 VDC	1250 VA	Gold (Au) Silver Nickel (AgNi)	72 mA	-40 °C	70 °C	DPDT (2 Form C)	5 VDC	20 ms	5 A	General Purpose
Panasonic Electric Works NC2EBD-DC6V	Socketable	250 VAC	100 Ohms	4.8 VDC	Sealed - Fully	10 ms	Plug In	Non Latching	CSA UR	0.6 VDC	1250 VA	Gold (Au) Silver Nickel (AgNi)	60 mA	-40 °C	70 °C	DPDT (2 Form C)		20 ms	5 A	General Purpose
Panasonic Electric Works NC2EBD-PL2-DC24V	Through Hole	250 VAC	720 Ohms	19.2 VDC	Sealed - Fully	10 ms	PC Pin	Latching Dual Coil	CSA UR		1250 VA	Gold (Au) Silver Nickel (AgNi)	33.3 mA	-40 °C	70 °C	DPDT (2 Form C)	24 VDC	20 ms	5 A	General Purpose
Panasonic Electric Works NC2EBD-P-DC12V	Through Hole	250 VAC	400 Ohms	9.6 VDC	Sealed - Fully	10 ms	PC Pin	Non Latching	CSA UR	1.2 VDC	1250 VA	Gold (Au) Silver Nickel (AgNi)	30 mA	-40 °C	70 °C	DPDT (2 Form C)	12 VDC	20 ms	5 A	General Purpose
Panasonic Electric Works NC2EBD-P-DC110V	Through Hole	250 VAC	13.5 kOhms	88 VDC	Sealed - Fully	10 ms	PC Pin	Non Latching	CSA UR	11 VDC	1250 VA	Gold (Au) Silver Nickel (AgNi)	8.2 mA	-40 °C	70 °C	DPDT (2 Form C)	110 VDC	20 ms	5 A	General Purpose
Panasonic Electric Works NC2EBD-DC12V	Socketable	250 VAC	400 Ohms	9.6 VDC	Sealed - Fully	10 ms	Plug In	Non Latching	CSA UR	1.2 VDC	1250 VA	Gold (Au) Silver Nickel (AgNi)	30 mA	-40 °C	70 °C	DPDT (2 Form C)	12 VDC	20 ms	5 A	General Purpose
