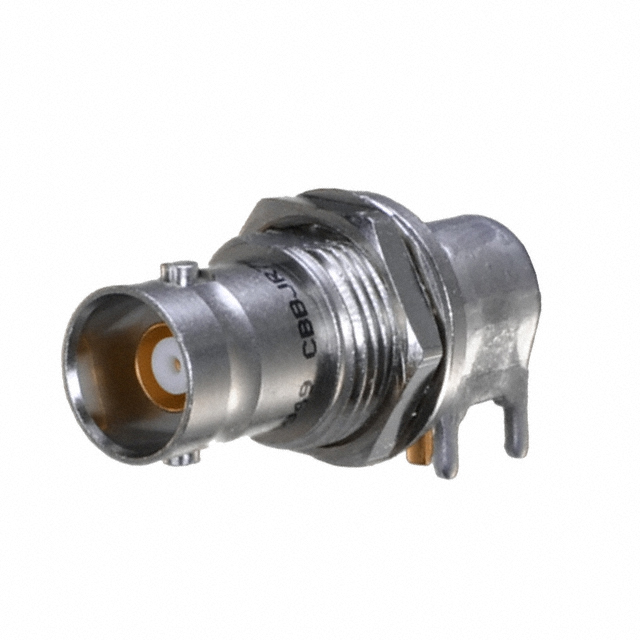

CBBJR79TL

Active

Cinch Connectivity Solutions Trompeter

CONN TRB JACK R/A PCB

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Trompeter

CONN TRB JACK R/A PCB

Technical Specifications

Parameters and characteristics for this part

Specification	CBBJR79TL

Body Finish	Tin
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	Twinaxial/Triaxial, TRB
Connector Type	Female Socket (Concentric), Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	500 MHz
Housing Color	Silver
Impedance	Non-Constant
Includes	Connector, Washer, Nut
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	400 V

Part	Dielectric Material	Voltage Rating	Mating Cycles	Impedance	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Includes	Center Contact Plating	Mounting Type	Frequency - Max [Max]	Body Finish	Shield Termination	Center Contact Material	Number of Ports	Body Material	Mounting Feature	Connector Style	Housing Color	Fastening Type	Contact Termination	Features
Cinch Connectivity Solutions Trompeter CBBJR79TL	Polytetrafluoroethylene (PTFE)	400 V	500	Non-Constant	Female Socket (Concentric) Jack	-65 ░C	165 °C	Connector Nut Washer	Gold	Panel Mount Right Angle Through Hole	500 MHz	Tin	Solder	Beryllium Copper	1	Brass	Bulkhead - Front Side Nut	TRB Twinaxial/Triaxial	Silver	Bayonet Lock	Solder
Cinch Connectivity Solutions Trompeter CBBJR39A					Female Socket Jack Male Pin (Concentric)			Connector Nut Washer	Gold	Panel Mount Right Angle Through Hole	500 MHz	Nickel	Solder		1	Brass	Bulkhead - Front Side Nut	BNC Twinaxial	Silver	Bayonet Lock	Solder	Board Guide

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

TRB, Twinaxial/Triaxial Connector Jack, Female Socket (Concentric) Non-Constant Panel Mount, Through Hole, Right Angle Solder
