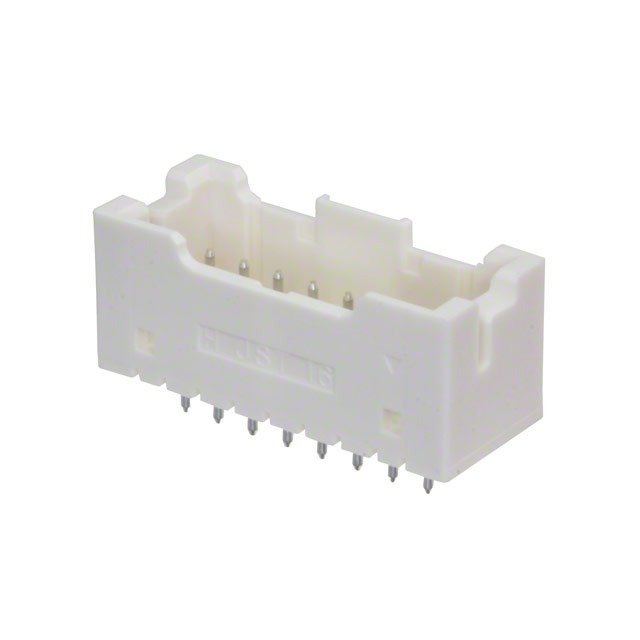

B16B-XADSS-N

Active

JST Sales America Inc.

CONN HEADER VERT 16POS 2.5MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER VERT 16POS 2.5MM

Technical Specifications

Parameters and characteristics for this part

Specification	B16B-XADSS-N

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post	3.5 mm
Contact Length - Post	0.138 in
Contact Material	Copper Alloy
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Locking Ramp
Insulation Color	Natural
Insulation Height	10.11 mm
Insulation Height	0.398 in
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Mated Stacking Heights	13.8 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating	2.5 mm
Pitch - Mating	0.098 in
Row Spacing - Mating	0.098 in
Row Spacing - Mating	2.5 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VDC

Part	Row Spacing - Mating	Row Spacing - Mating	Termination	Contact Length - Post	Contact Length - Post	Contact Material	Mounting Type	Connector Type	Fastening Type	Material Flammability Rating	Insulation Height	Insulation Height	Contact Shape	Mated Stacking Heights	Style	Contact Finish - Post	Number of Positions	Insulation Color	Contact Type	Pitch - Mating	Pitch - Mating	Voltage Rating	Shrouding	Current Rating (Amps)	Number of Positions Loaded	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Features
JST Sales America Inc. B16B-XADSS-N	0.098 in	2.5 mm	Solder	3.5 mm	0.138 in	Copper Alloy	Through Hole	Header	Locking Ramp	UL94 V-0	10.11 mm	0.398 in	Circular	13.8 mm	Board to Cable/Wire	Tin	16	Natural	Male Pin	2.5 mm	0.098 in	250 VDC	Shrouded - 4 Wall	3 A	All	Polyamide (PA66) Nylon 6/6 Glass Filled	-25 °C	85 °C	2
JST Sales America Inc. B16B-XADSS-N-A	0.098 in	2.5 mm	Solder	3.5 mm	0.138 in	Copper Alloy	Through Hole	Header	Locking Ramp	UL94 V-0	10.11 mm	0.398 in	Circular	13.8 mm	Board to Cable/Wire	Tin	16	Natural	Male Pin	2.5 mm	0.098 in	250 VDC	Shrouded - 4 Wall	3 A	All	Polyamide (PA66) Nylon 6/6 Glass Filled	-25 °C	85 °C	2	Board Guide

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 16 position 0.098" (2.50mm)
