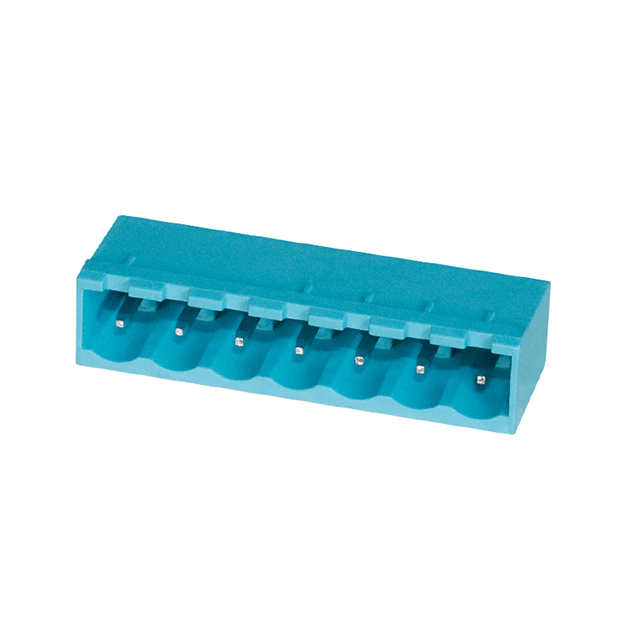

TBP01R1-508-07BE

Active

CUI Devices

TERMINAL BLOCK, PLUGGABLE, 5.08,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TBP01R1-508-07BE

Active

CUI Devices

TERMINAL BLOCK, PLUGGABLE, 5.08,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TBP01R1-508-07BE

Color	Blue
Contact Material	Copper Alloy
Contact Mating Finish	Tin
Contact Tail Length	0.157 in
Contact Tail Length	4 mm
Current - IEC	20 A
Current - UL	16 A
Header Orientation	90°, Right Angle
Insulation Height	0.335 "
Insulation Height	8.51 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Levels	1
Number of Positions	7
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.2 in
Pitch [x]	5.08 mm
Positions Per Level	7
Termination Style	Solder
Type	Header, Male Pins, Shrouded (4 Side)
Voltage - IEC	320 V
Voltage - UL	300 V

TBP01R1 Series

Part	Termination Style	Current - UL	Type	Voltage - UL	Operating Temperature [Min]	Operating Temperature [Max]	Contact Tail Length	Contact Tail Length	Mounting Type	Contact Material	Insulation Height	Insulation Height	Pitch [x]	Pitch [x]	Number of Positions	Color	Voltage - IEC	Positions Per Level	Number of Levels	Current - IEC	Header Orientation	Contact Mating Finish	Material Flammability Rating	Number of Positions	Features
CUI Devices TBP01R1-508-02BE	Solder	16 A	Header Male Pins Shrouded (4 Side)	300 V	-40 °C	105 ░C	0.157 in	4 mm	Through Hole	Copper Alloy	0.335 "	8.51 mm	0.2 in	5.08 mm	2	Blue	320 V	2	1	20 A	90° Right Angle	Tin	UL94 V-0
CUI Devices TBP01R1-508-14BE	Solder	16 A	Header Male Pins Shrouded (4 Side)	300 V	-40 °C	105 ░C	0.157 in	4 mm	Through Hole	Copper Alloy	0.335 "	8.51 mm	0.2 in	5.08 mm	14	Blue	320 V	14	1	20 A	90° Right Angle	Tin	UL94 V-0
CUI Devices TBP01R1-508-11BE	Solder	16 A	Header Male Pins Shrouded (4 Side)	300 V	-40 °C	105 ░C	0.157 in	4 mm	Through Hole	Copper Alloy	0.335 "	8.51 mm	0.2 in	5.08 mm	11	Blue	320 V	11	1	20 A	90° Right Angle	Tin	UL94 V-0
CUI Devices TBP01R1-508-10BE	Solder	16 A	Header Male Pins Shrouded (4 Side)	300 V	-40 °C	105 ░C	0.157 in	4 mm	Through Hole	Copper Alloy	0.335 "	8.51 mm	0.2 in	5.08 mm	10	Blue	320 V	10	1	20 A	90° Right Angle	Tin	UL94 V-0
CUI Devices TBP01R1-508-16BE	Solder	16 A	Header Male Pins Shrouded (4 Side)	300 V	-40 °C	105 ░C	0.157 in	4 mm	Through Hole	Copper Alloy	0.335 "	8.51 mm	0.2 in	5.08 mm		Blue	320 V	16	1	20 A	90° Right Angle	Tin	UL94 V-0	16
CUI Devices TBP01R1-508-06BE	Solder	16 A	Header Male Pins Shrouded (4 Side)	300 V	-40 °C	105 ░C	0.157 in	4 mm	Through Hole	Copper Alloy	0.335 "	8.51 mm	0.2 in	5.08 mm	6	Blue	320 V	6	1	20 A	90° Right Angle	Tin	UL94 V-0
CUI Devices TBP01R1W-508-02BE	Solder	16 A	Header Male Pins Shrouded (4 Side)	300 V	-40 °C	105 ░C	0.157 in	4 mm	Through Hole	Copper Alloy	0.335 "	8.51 mm	0.2 in	5.08 mm	2	Blue	320 V	2	1	20 A	90° Right Angle	Tin	UL94 V-0		Mating Flange
CUI Devices TBP01R1-508-07BE	Solder	16 A	Header Male Pins Shrouded (4 Side)	300 V	-40 °C	105 ░C	0.157 in	4 mm	Through Hole	Copper Alloy	0.335 "	8.51 mm	0.2 in	5.08 mm	7	Blue	320 V	7	1	20 A	90° Right Angle	Tin	UL94 V-0
CUI Devices TBP01R1W-508-12BE	Solder	16 A	Header Male Pins Shrouded (4 Side)	300 V	-40 °C	105 ░C	0.157 in	4 mm	Through Hole	Copper Alloy	0.335 "	8.51 mm	0.2 in	5.08 mm	12	Blue	320 V	12	1	20 A	90° Right Angle	Tin	UL94 V-0		Mating Flange
CUI Devices TBP01R1-508-24BE	Solder	16 A	Header Male Pins Shrouded (4 Side)	300 V	-40 °C	105 ░C	0.157 in	4 mm	Through Hole	Copper Alloy	0.335 "	8.51 mm	0.2 in	5.08 mm	24	Blue	320 V		1	20 A	90° Right Angle	Tin	UL94 V-0

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 0.95
		10	$ 0.49
		25	$ 0.40
		50	$ 0.35
		100	$ 0.32
		250	$ 0.28
		500	$ 0.26
		1000	$ 0.25
		5000	$ 0.25

Description

General part information

TBP01R1 Series

7 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) 90°, Right Angle Through Hole
