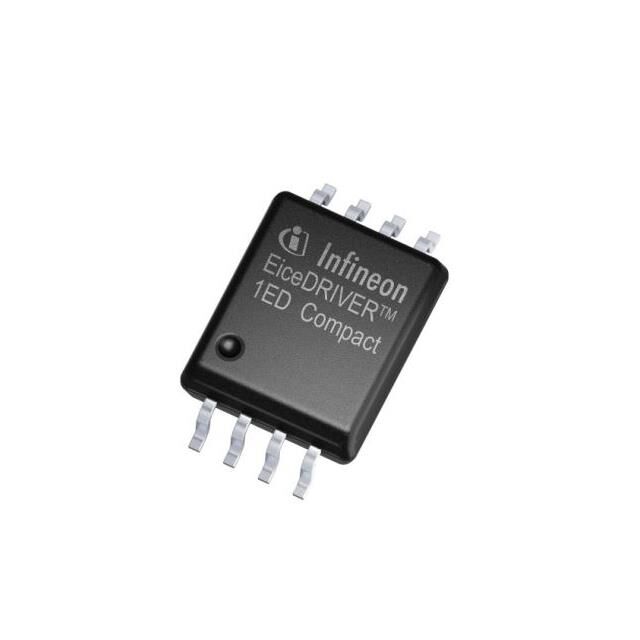

1ED3122MU12HXUMA1
ActiveTHE 1ED3122MU12H IS A 1200 V, 10A, 5.7 KV (RMS) SINGLE-CHANNEL ISOLATED GATE DRIVER
Deep-Dive with AI
Search across all available documentation for this part.
1ED3122MU12HXUMA1
ActiveTHE 1ED3122MU12H IS A 1200 V, 10A, 5.7 KV (RMS) SINGLE-CHANNEL ISOLATED GATE DRIVER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1ED3122MU12HXUMA1 |
|---|---|
| Approval Agency | UL |
| Common Mode Transient Immunity (Min) [Min] | 200 V/ns |
| Current - Peak Output | 10 A |
| Mounting Type | Surface Mount |
| Number of Channels | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 8-SOIC |
| Package / Case [custom] | 0.295 in |
| Package / Case [custom] | 7.5 mm |
| Rise / Fall Time (Typ) [custom] | 15 ns |
| Rise / Fall Time (Typ) [custom] | 15 ns |
| Supplier Device Package | PG-DSO-8-66 |
| Technology | Magnetic Coupling |
| Voltage - Isolation | 1200 Vrms |
| Voltage - Output Supply [Max] | 35 V |
| Voltage - Output Supply [Min] | 10 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.84 | |
| 10 | $ 2.12 | |||
| 25 | $ 1.94 | |||
| 100 | $ 1.75 | |||
| 250 | $ 1.65 | |||
| 500 | $ 1.60 | |||
| Digi-Reel® | 1 | $ 2.84 | ||
| 10 | $ 2.12 | |||
| 25 | $ 1.94 | |||
| 100 | $ 1.75 | |||
| 250 | $ 1.65 | |||
| 500 | $ 1.60 | |||
| Tape & Reel (TR) | 1000 | $ 1.55 | ||
| 2000 | $ 1.51 | |||
| 3000 | $ 1.49 | |||
| 5000 | $ 1.47 | |||
| Newark | Each (Supplied on Cut Tape) | 1 | $ 2.59 | |
| 10 | $ 1.90 | |||
| 25 | $ 1.85 | |||
| 50 | $ 1.79 | |||
| 100 | $ 1.74 | |||
| 250 | $ 1.66 | |||
| 500 | $ 1.62 | |||
| 1000 | $ 1.41 | |||
Description
General part information
1ED3122 Series
EiceDRIVER™ Compactsingle-channelisolated gate driverwith 10 A typical sinking and sourcing peak output current in DSO-8 wide-body package with large creepage distance (>8 mm) forIGBTs,MOSFETsandSiC MOSFETs. 1ED3122MU12H belongs to the EiceDRIVER™ Compact 1ED31xx family (X3 compact family). 1ED3122 offers active Miller clamp, accurate and stable timing, active shutdown to ensure a safe IGBT off-state in case the output chip is not connected to the power, short-circuit clamping to limit the gate voltage during short circuit. The driver can operate over a wide supply voltage range, either unipolar or bipolar.
