PR20205HBDN

Active

METZ CONNECT USA Inc.

PIN HEADER, THR, DUAL ROW, .100"

Search across all available documentation for this part.

Active

METZ CONNECT USA Inc.

PIN HEADER, THR, DUAL ROW, .100"

Technical Specifications

Parameters and characteristics for this part

Specification	PR20205HBDN

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Length - Mating	6 mm
Contact Length - Mating	0.236 in
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.197 in
Insulation Height	5 mm
Insulation Material	Polyethylene
Mounting Type	Through Hole, Right Angle
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Termination	Solder

Part	Contact Shape	Shrouding	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Number of Positions	Connector Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Post	Contact Length - Post	Contact Material	Pitch - Mating	Pitch - Mating	Termination	Insulation Color	Insulation Height	Insulation Height	Contact Length - Mating	Contact Length - Mating	Contact Finish - Mating	Number of Positions Loaded	Contact Type	Fastening Type	Insulation Material	Number of Rows	Contact Finish Thickness - Mating
METZ CONNECT USA Inc. PR20205HBDN	Square	Unshrouded	-40 °C	105 ░C	Through Hole Right Angle	10	Header	2.54 mm	0.1 in	0.118 in	3 mm	Copper Alloy	0.1 in	2.54 mm	Solder	Black	0.197 in	5 mm	6 mm	0.236 in	Gold	All	Male Pin	Push-Pull	Polyethylene	2	Flash

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

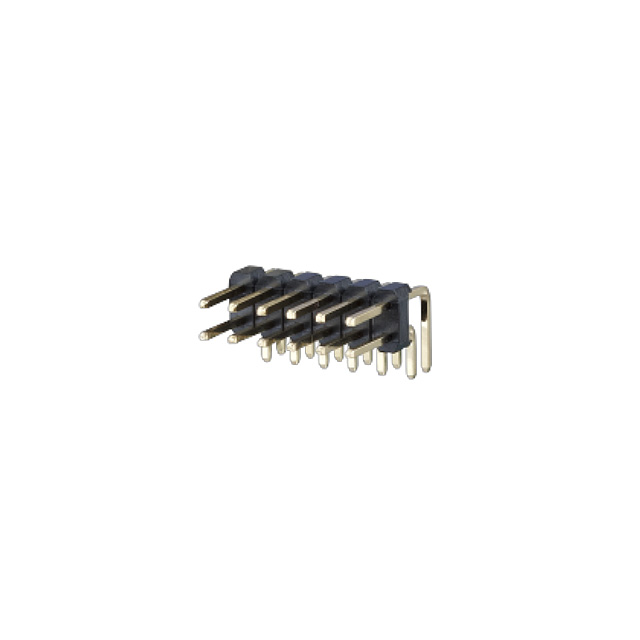

Connector Header Through Hole, Right Angle 10 position 0.100" (2.54mm)
