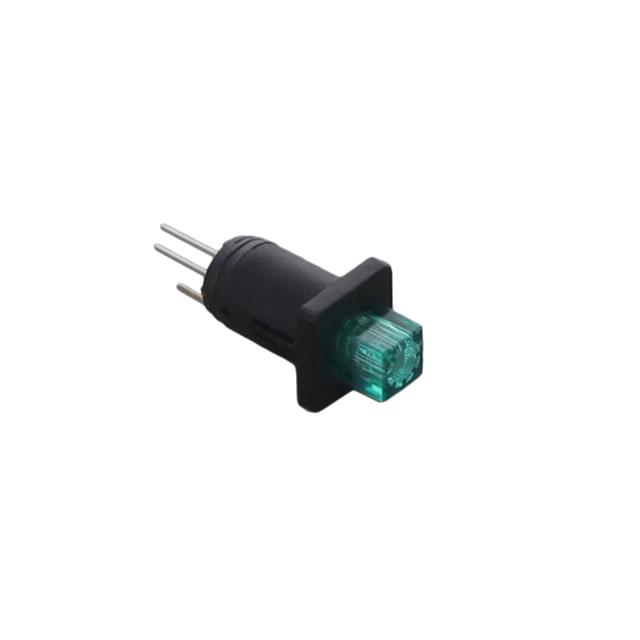

0041.9146.5327
ActiveSCHURTER Inc.
SWITCH PUSH SPST-NO 200MA 60V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
0041.9146.5327
ActiveSCHURTER Inc.
SWITCH PUSH SPST-NO 200MA 60V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 0041.9146.5327 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Button, Square |
| Circuit | SPST-NO |
| Color - Actuator/Cap | Green |
| Current Rating (Amps) | 200 mA |
| Electrical Life | 10000 Cycles |
| Illumination Type, Color | LED, Green |
| Illumination Voltage (Nominal) | 2 VDC |
| Ingress Protection | IP40 |
| Mechanical Life | 10000 Steps |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [diameter] | 8 mm |
| Switch Function | Off-Mom |
| Termination Style | PC Pin |
| Type | Illuminated, Standard |
| Voltage Rating - AC | 60 V |
| Voltage Rating - DC | 50 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 10.98 | |
| 50 | $ 8.17 | |||
| 100 | $ 6.43 | |||
| 500 | $ 5.89 | |||
Description
General part information
0041.9146 Series
Pushbutton Switch SPST-NO Standard, Illuminated Panel Mount, Front
