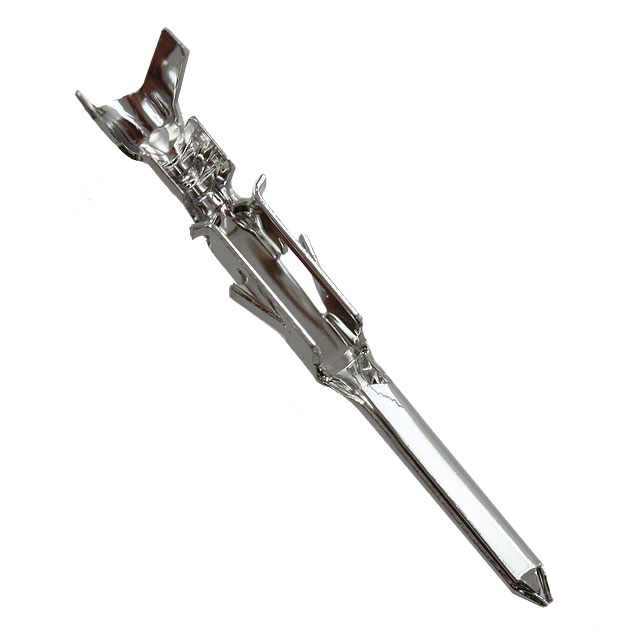

0304902002
ActiveMolex
CONTACT PIN CRIMP ST CABLE MOUNT 18-24AWG MINI-FIT® T/R
Deep-Dive with AI
Search across all available documentation for this part.
0304902002
ActiveMolex
CONTACT PIN CRIMP ST CABLE MOUNT 18-24AWG MINI-FIT® T/R
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0304902002 |
|---|---|
| Contact Finish | Tin |
| Contact Finish Thickness | 2.54 µm |
| Contact Finish Thickness | 100 µin |
| Contact Termination | Crimp |
| Pin or Socket | Pin |
| Wire Gauge [Max] | 24 AWG |
| Wire Gauge [Min] | 17.5 AWG |
030490 Series
| Part | Contact Finish | Contact Termination | Wire Gauge [Max] | Wire Gauge [Min] | Contact Finish Thickness | Contact Finish Thickness | Pin or Socket |
|---|---|---|---|---|---|---|---|
Molex | Tin | Crimp | 24 AWG | 17.5 AWG | 2.54 µm | 100 µin | Pin |
Molex | Gold | Crimp | 24 AWG | 17.5 AWG | 0.76 Ám | 30 Áin | Pin |
Molex | Gold | Crimp | 24 AWG | 17.5 AWG | 0.76 Ám | 30 Áin | Pin |
Molex | Tin | Crimp | 24 AWG | 17.5 AWG | 2.54 µm | 100 µin | Pin |
Molex | Gold | Crimp | 24 AWG | 17.5 AWG | 0.76 Ám | 30 Áin | Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
030490 Series
Pin Contact Tin 18-24 AWG Crimp
Documents
Technical documentation and resources
No documents available
