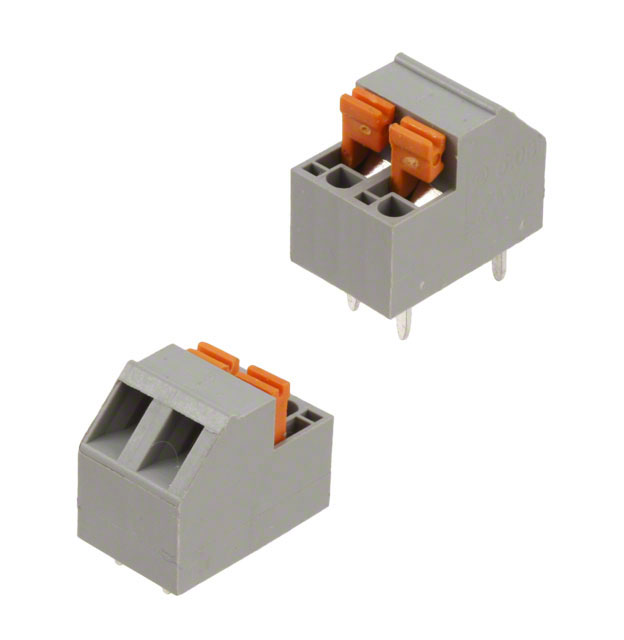

OSTHD020080
ActiveOn Shore Technology Inc.
TERM BLOCK 2POS 5.08MM PCB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
OSTHD020080
ActiveOn Shore Technology Inc.
TERM BLOCK 2POS 5.08MM PCB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | OSTHD020080 |
|---|---|
| Clamp Material - Plating | Stainless, Steel |
| Color | Gray |
| Contact Material - Plating [custom] | Brass - Tin Plated |
| Current | 12 A |
| Features | Lever Actuated |
| Housing Material | Thermoplastic |
| Mating Orientation | Angled |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -30 ░C |
| Pitch [x] | 0.2 in |
| Pitch [x] | 5.08 mm |
| Positions Per Level | 2 |
| Wire Gauge [Max] | 22 AWG |
| Wire Gauge [Min] | 16 AWG |
| Wire Termination | Push-In Spring, Screwless - Leg Spring |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.39 | |
| 10 | $ 0.79 | |||
| 25 | $ 0.67 | |||
| 50 | $ 0.60 | |||
| 100 | $ 0.55 | |||
| 250 | $ 0.50 | |||
| 500 | $ 0.48 | |||
Description
General part information
OSTHD Series
2 Position Wire to Board Terminal Block Angled 0.200" (5.08mm) Through Hole
