0391701040

Obsolete

Molex

INTERFACE MOD HDR 40POS 12-26AWG

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0391701040

Control Side Cable Retainer	Latches
Control Side Connection [custom]	Male
Control Side Connection [custom]	Rectangular
Current Rating (Per Contact)	15 A
Features	Component Area
Length	111.51 mm
Length	4.39 "
Operating Temperature	110 °C
Positions / Poles	40
Process Side Connection	Terminal Blocks - Screw Connection
Voltage - Rated	300 V
Wire Gauge [Max]	26 AWG
Wire Gauge [Min]	12 AWG

039170 Series

Part	Operating Temperature	Positions / Poles [custom]	Control Side Connection	Features	Voltage - Rated	Current Rating (Per Contact)	Control Side Cable Retainer	Wire Gauge [Max]	Wire Gauge [Min]	Length	Length	Process Side Connection	Positions / Poles	Control Side Connection [custom]	Control Side Connection [custom]
Molex 0391702009	110 °C	9	D-Sub Male	Component Area	300 V	15 A	Jackscrew Socket	26 AWG	12 AWG	39.4 mm	1.551 in	Terminal Blocks - Screw Connection
Molex 0391702050	110 °C		D-Sub Male	Component Area	300 V	15 A	Jackscrew Socket	26 AWG	12 AWG	142.01 mm	5.591 in	Terminal Blocks - Screw Connection	50
Molex 0391703015	110 °C		D-Sub Female	Component Area	300 V	15 A	Jackscrew Socket	26 AWG	12 AWG	54.4 mm	2.142 in	Terminal Blocks - Screw Connection	15
Molex 0391701026	110 °C			Component Area	300 V	15 A	Latches	26 AWG	12 AWG	76.2 mm	3 in	Terminal Blocks - Screw Connection	26	Male	Rectangular
Molex 0391702137	110 °C		D-Sub Male	Component Area	300 V	15 A	Jackscrew Socket	26 AWG	12 AWG	106.4 mm	4.189 in	Terminal Blocks - Header and Plug	37
Molex 0391701114	110 °C			Component Area	300 V	15 A	Latches	26 AWG	12 AWG	50.8 mm	2 in	Terminal Blocks - Header and Plug	14	Male	Rectangular
Molex 0391701020	110 °C			Component Area	300 V	15 A	Latches	26 AWG	12 AWG	61 mm	2.402 "	Terminal Blocks - Screw Connection	20	Male	Rectangular
Molex 0391701040	110 °C			Component Area	300 V	15 A	Latches	26 AWG	12 AWG	111.51 mm	4.39 "	Terminal Blocks - Screw Connection	40	Male	Rectangular
Molex 0391703150	110 °C		D-Sub Female	Component Area	300 V	15 A	Jackscrew Socket	26 AWG	12 AWG	142.01 mm	5.591 in	Terminal Blocks - Header and Plug	50
Molex 0391703115	110 °C		D-Sub Female	Component Area	300 V	15 A	Jackscrew Socket	26 AWG	12 AWG	54.4 mm	2.142 in	Terminal Blocks - Header and Plug	15

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

039170 Series

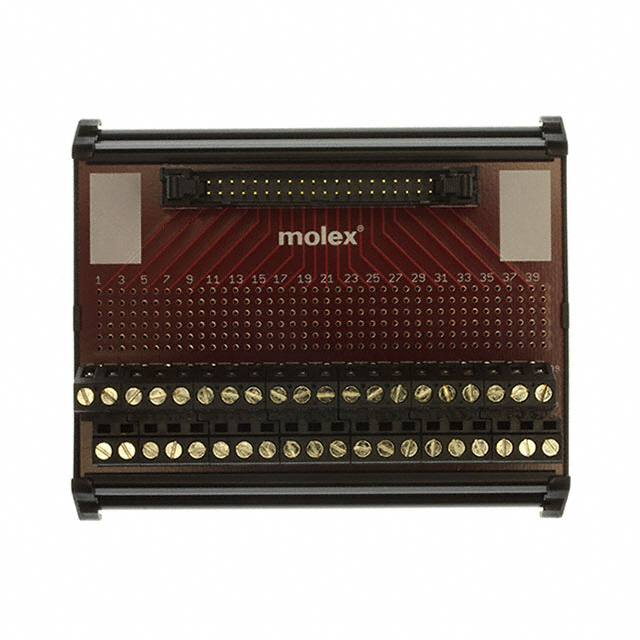

40 Position Interface Module Terminal Blocks - Screw Connection To Rectangular, Male 12-26 AWG
