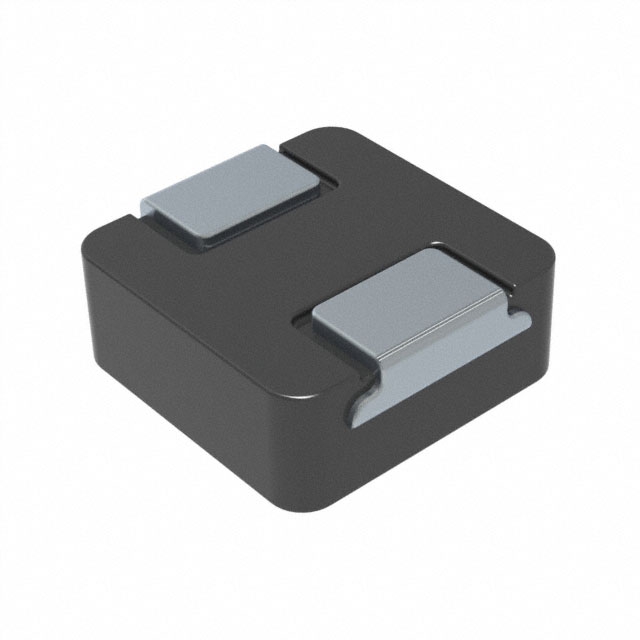

VCMT104T-330MN5

Active

Delta Electronics/Cyntec

FIXED IND 33UH 3.6A 102MOHM SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

VCMT104T-330MN5

Active

Delta Electronics/Cyntec

FIXED IND 33UH 3.6A 102MOHM SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	VCMT104T-330MN5

Current - Saturation (Isat)	3.6 A
Current Rating (Amps)	3.6 A
DC Resistance (DCR) [Max]	102 mOhm
Height - Seated (Max) [Max]	0.157 in
Height - Seated (Max) [Max]	4 mm
Inductance	33 µH
Inductance Frequency - Test	100 kHz
Material - Core	Metal
Mounting Type	Surface Mount
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Package / Case	Nonstandard
Ratings	AEC-Q200
Shielding	Unshielded
Size / Dimension [x]	0.427 "
Size / Dimension [x]	10.85 mm
Size / Dimension [y]	10 mm
Size / Dimension [y]	0.394 in
Tolerance	20 %

VCMT104T Series

Part	Inductance Frequency - Test	Current - Saturation (Isat)	Ratings	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Inductance	Tolerance	Mounting Type	Material - Core	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	DC Resistance (DCR) [Max]	Shielding	DC Resistance (DCR)
Delta Electronics/Cyntec VCMT104T-220MN5	100 kHz	4.6 A	AEC-Q200	10 mm	0.394 in	0.427 "	10.85 mm	0.157 in	4 mm	22 µH	20 %	Surface Mount	Metal	Nonstandard	155 °C	-55 °C	4.6 A	68 mOhm	Unshielded
Delta Electronics/Cyntec VCMT104T-330MN5	100 kHz	3.6 A	AEC-Q200	10 mm	0.394 in	0.427 "	10.85 mm	0.157 in	4 mm	33 µH	20 %	Surface Mount	Metal	Nonstandard	155 °C	-55 °C	3.6 A	102 mOhm	Unshielded
Delta Electronics/Cyntec VCMT104T-150MN5	100 kHz	5.4 A	AEC-Q200	10 mm	0.394 in	0.427 "	10.85 mm	0.157 in	4 mm	15 µH	20 %	Surface Mount	Metal	Nonstandard	155 °C	-55 °C	5.4 A		Unshielded	49 mOhm
Delta Electronics/Cyntec VCMT104T-6R8MN5	100 kHz	8.5 A	AEC-Q200	10 mm	0.394 in	0.427 "	10.85 mm	0.157 in	4 mm	6.8 µH	20 %	Surface Mount	Metal	Nonstandard	155 °C	-55 °C	8.5 A	21.5 mOhm	Unshielded
Delta Electronics/Cyntec VCMT104T-4R7MN5	100 kHz	11 A	AEC-Q200	10 mm	0.394 in	0.427 "	10.85 mm	0.157 in	4 mm	4.7 ÁH	20 %	Surface Mount	Metal	Nonstandard	155 °C	-55 °C	11 A	15 mOhm	Unshielded
Delta Electronics/Cyntec VCMT104T-470MN5	100 kHz	3.2 A	AEC-Q200	10 mm	0.394 in	0.427 "	10.85 mm	0.157 in	4 mm	47 µH	20 %	Surface Mount	Metal	Nonstandard	155 °C	-55 °C	3.2 A	188 mOhm	Unshielded
Delta Electronics/Cyntec VCMT104T-100MN5	100 kHz	6 A	AEC-Q200	10 mm	0.394 in	0.427 "	10.85 mm	0.157 in	4 mm	10 µH	20 %	Surface Mount	Metal	Nonstandard	155 °C	-55 °C	6 A	33 mOhm	Unshielded
