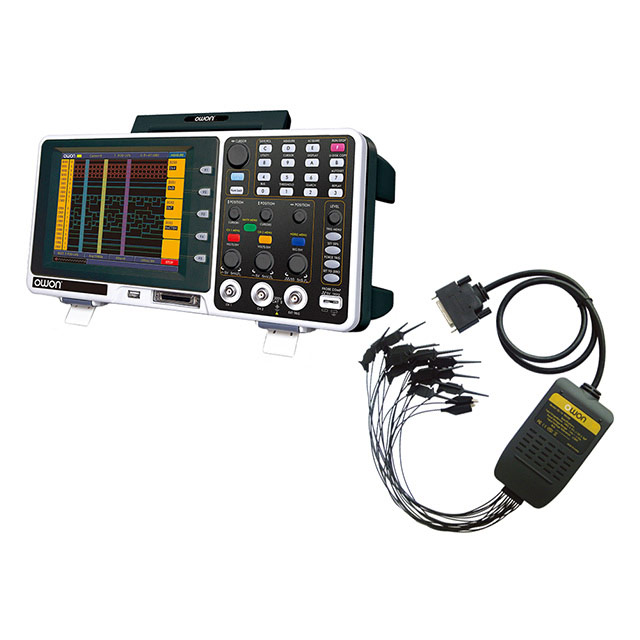

MSO7062TD

Active

Owon Technology Lilliput Electronics (USA) Inc

O-SCOPE 60MHZ 2 CH 1GS/S

Search across all available documentation for this part.

Active

Owon Technology Lilliput Electronics (USA) Inc

O-SCOPE 60MHZ 2 CH 1GS/S

Technical Specifications

Parameters and characteristics for this part

Specification	MSO7062TD

Bandwidth	60 MHz
Channels	2
Display Type	LCD - Color
Function	Record
Includes	Probe, Manual, Logic Analyzer Module
Input Impedance	1 M, 15 pF
Interface	USB
Memory Size	2 Mpts
Probe Type	Passive 10:1 (2)
Rise Time (Typ)	5.8 ns
Sampling Rate (Per Second)	1 G
Type	Bench
Voltage - Input (Max) [Max]	400 V
Voltage - Supply [Max]	240 VAC
Voltage - Supply [Min]	100 VAC

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Sampling Rate (Per Second)	Memory Size	Rise Time (Typ)	Voltage - Input (Max) [Max]	Interface	Display Type	Probe Type	Bandwidth	Channels	Includes	Input Impedance	Type	Function
Owon Technology Lilliput Electronics (USA) Inc MSO7062TD	100 VAC	240 VAC	1 G	2 Mpts	5.8 ns	400 V	USB	LCD - Color	Passive 10:1 (2)	60 MHz	2	Logic Analyzer Module Manual Probe	1 M 15 pF	Bench	Record

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 699.00

General part information

60 MHz Bench Oscilloscopes USB Interface LCD - Color Display 2 Channel 400V Record

Technical documentation and resources

No documents available
