0239.600MRET1P
ActiveLittelfuse/Commercial Vehicle Products
FUSE 250V SLO-BLO LBC 5X20 ROHS .600A/ TR
Deep-Dive with AI
Search across all available documentation for this part.
0239.600MRET1P
ActiveLittelfuse/Commercial Vehicle Products
FUSE 250V SLO-BLO LBC 5X20 ROHS .600A/ TR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0239.600MRET1P |
|---|---|
| Approval Agency | CSA, CE, KC, UL |
| Breaking Capacity @ Rated Voltage | 35 A |
| Current Rating (Amps) | 600 mA |
| DC Cold Resistance | 0.699 Ohms |
| Melting I²t | 2.415 |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case [x] | 5 mm |
| Package / Case [y] | 20 mm |
| Response Time | Slow Blow |
| Size / Dimension [diameter] | 5.8 mm |
| Size / Dimension [diameter] | 0.228 in |
| Size / Dimension [z] | 22.5 mm |
| Size / Dimension [z] | 0.886 " |
| Voltage Rating - AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
0239.600 Series

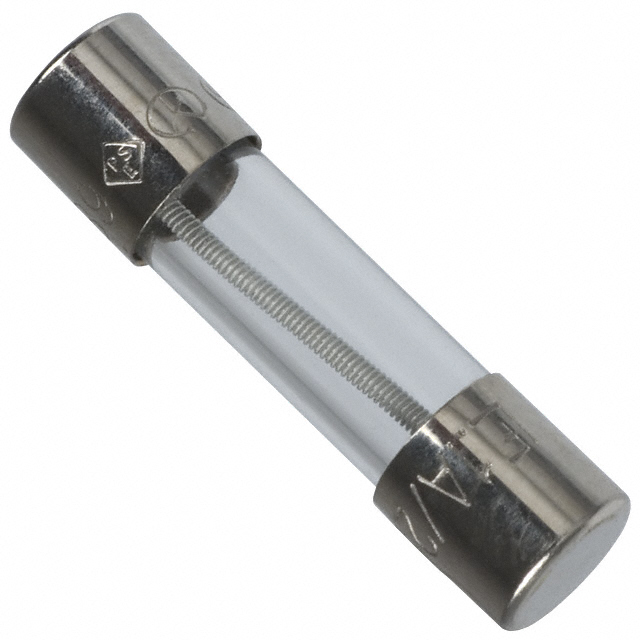

5x20mm time-Lag glass body cartridge fuse designed to JL specification.
