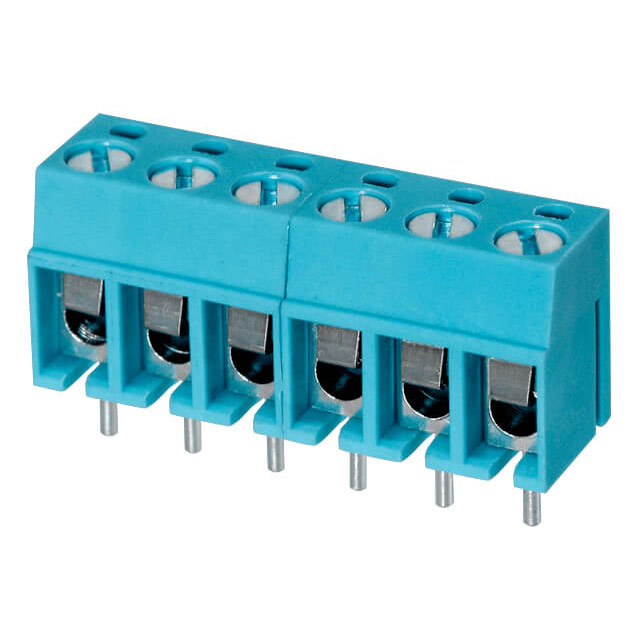

TB001-500-06BE
ActiveCUI Devices
TERMINAL BLOCK, SCREW TYPE, 5.00
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TB001-500-06BE
ActiveCUI Devices
TERMINAL BLOCK, SCREW TYPE, 5.00
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TB001-500-06BE |
|---|---|
| Clamp Material - Plating | Stainless, Steel |
| Color | Blue |
| Contact Material - Plating | Copper Alloy - Tin Plated |
| Current | 15 A |
| Features | Interlocking (Side) |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Mating Orientation | Horizontal with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 5 mm |
| Pitch [x] | 0.197 in |
| Positions Per Level | 6 |
| Screw Material - Plating | Steel, Zinc Plated |
| Screw Thread | M3 |
| Torque - Screw | 4.4 Lb-In |
| Torque - Screw | 0.5 Nm |
| Voltage | 300 V |
| Wire Gauge [Max] | 22 AWG |
| Wire Gauge [Min] | 12 AWG |
| Wire Termination | Screw - Leaf Spring, Wire Guard |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 0.97 | |
| 10 | $ 0.68 | |||
| 25 | $ 0.63 | |||
| 50 | $ 0.58 | |||
| 100 | $ 0.57 | |||
| 250 | $ 0.48 | |||
| 600 | $ 0.46 | |||
| 1200 | $ 0.41 | |||
| 5400 | $ 0.33 | |||
Description
General part information
TB001 Series
6 Position Wire to Board Terminal Block Horizontal with Board 0.197" (5.00mm) Through Hole
