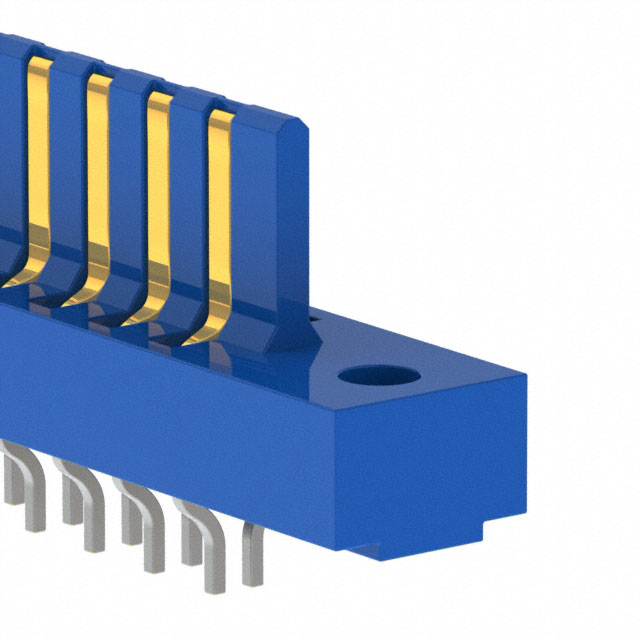

ECM14MMRD

Active

Sullins Connector Solutions

CONN CARDEDGE MALE 28POS 0.156

Deep-Dive with AI

Search across all available documentation for this part.

ECM14MMRD

Active

Sullins Connector Solutions

CONN CARDEDGE MALE 28POS 0.156

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ECM14MMRD

Card Thickness	0.062 in
Card Thickness	1.57 mm
Card Type	Fits Female Edgecards
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Phosphor Bronze
Features	Card Extender
Flange Feature	Flush Mount, Top Opening, Unthreaded
Flange Feature	0.125 "
Flange Feature	3.18 mm
Gender	Male
Material - Insulation	Polybutylene Terephthalate (PBT)
Mounting Type	Board Edge, Straddle Mount
Number of Positions	28
Number of Positions/Bay/Row [custom]	14
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder

ECM14 Series

Part	Material - Insulation	Pitch [x]	Pitch [x]	Contact Material	Card Thickness	Card Thickness	Contact Finish	Number of Positions	Mounting Type	Read Out	Number of Rows	Card Type	Contact Finish Thickness	Contact Finish Thickness	Gender	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Number of Positions/Bay/Row [custom]	Flange Feature	Flange Feature	Flange Feature	Features
Sullins Connector Solutions ECM14MMWN	Polybutylene Terephthalate (PBT)	0.156 in	3.96 mm	Phosphor Bronze	0.062 in	1.57 mm	Gold	28	Through Hole	Dual	2	Fits Female Edgecards	0.76 Ám	30 Áin	Male	125 °C	-65 ░C	Solder	14
Sullins Connector Solutions ECM14MMVD-S189	Polybutylene Terephthalate (PBT)	0.156 in	3.96 mm	Phosphor Bronze	0.062 in	1.57 mm	Gold	28	Through Hole Right Angle	Dual	2	Fits Female Edgecards	0.76 Ám	30 Áin	Male	125 °C	-65 ░C	Solder	14	Flush Mount Top Opening Unthreaded	0.125 "	3.18 mm
Sullins Connector Solutions ECM14MMJN	Polybutylene Terephthalate (PBT)	0.156 in	3.96 mm	Phosphor Bronze	0.062 in	1.57 mm	Gold	28	Through Hole Right Angle	Dual	2	Fits Female Edgecards	0.76 Ám	30 Áin	Male	125 °C	-65 ░C	Solder	14
Sullins Connector Solutions ECM14MMND	Polybutylene Terephthalate (PBT)	0.156 in	3.96 mm	Phosphor Bronze	0.062 in	1.57 mm	Gold	28	Board Edge Straddle Mount	Dual	2	Fits Female Edgecards	0.76 Ám	30 Áin	Male	125 °C	-65 ░C	Solder	14	Flush Mount Top Opening Unthreaded	0.125 "	3.18 mm	Card Extender
Sullins Connector Solutions ECM14MMVN-S189	Polybutylene Terephthalate (PBT)	0.156 in	3.96 mm	Phosphor Bronze	0.062 in	1.57 mm	Gold	28	Through Hole Right Angle	Dual	2	Fits Female Edgecards	0.76 Ám	30 Áin	Male	125 °C	-65 ░C	Solder	14
Sullins Connector Solutions ECM14MMRD	Polybutylene Terephthalate (PBT)	0.156 in	3.96 mm	Phosphor Bronze	0.062 in	1.57 mm	Gold	28	Board Edge Straddle Mount	Dual	2	Fits Female Edgecards	0.76 Ám	30 Áin	Male	125 °C	-65 ░C	Solder	14	Flush Mount Top Opening Unthreaded	0.125 "	3.18 mm	Card Extender
Sullins Connector Solutions ECM14MMAN	Polybutylene Terephthalate (PBT)	0.156 in	3.96 mm	Phosphor Bronze	0.062 in	1.57 mm	Gold	28	Through Hole Right Angle	Dual	2	Fits Female Edgecards	0.76 Ám	30 Áin	Male	125 °C	-65 ░C	Solder	14
Sullins Connector Solutions ECM14MMSD	Polybutylene Terephthalate (PBT)	0.156 in	3.96 mm	Phosphor Bronze	0.062 in	1.57 mm	Gold	28	Through Hole	Dual	2	Fits Female Edgecards	0.76 Ám	30 Áin	Male	125 °C	-65 ░C	Solder	14	Flush Mount Top Opening Unthreaded	0.125 "	3.18 mm
Sullins Connector Solutions ECM14MMDN	Polybutylene Terephthalate (PBT)	0.156 in	3.96 mm	Phosphor Bronze	0.062 in	1.57 mm	Gold	28	Through Hole Right Angle	Dual	2	Fits Female Edgecards	0.76 Ám	30 Áin	Male	125 °C	-65 ░C	Solder	14
Sullins Connector Solutions ECM14MMMD	Polybutylene Terephthalate (PBT)	0.156 in	3.96 mm	Phosphor Bronze	0.062 in	1.57 mm	Gold	28	Through Hole	Dual	2	Fits Female Edgecards	0.76 Ám	30 Áin	Male	125 °C	-65 ░C	Wire Wrap	14	Flush Mount Top Opening Unthreaded	0.125 "	3.18 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	10	$ 6.15

Description

General part information

ECM14 Series

28 Position Male Connector Fits Female Edgecards Gold 0.156" (3.96mm)
