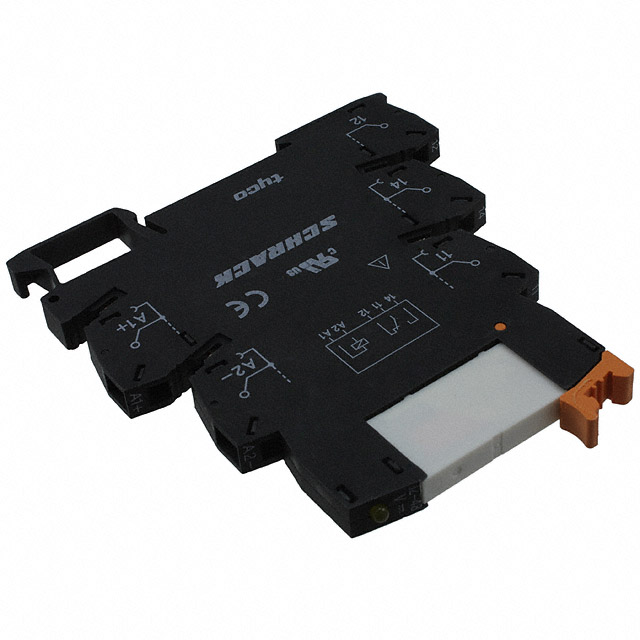

ST4P3TP0
ObsoleteTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE SPDT 6A 230V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ST4P3TP0 |
|---|---|
| Approval Agency | cURus, VDE |
| Coil Current | 3.2 mA |
| Coil Resistance | 71.88 kOhms |
| Coil Type | Non Latching |
| Coil Voltage | 230 VAC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 6 A |
| Features | Socket Included |
| Load - Max Switching [Max] | 2400 VA |
| Mounting Type | DIN Rail |
| Must Release Voltage | 15 VAC |
| Operate Time | 12 ms |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 5 ms |
| Seal Rating | Sealed - Fully |
| Switching Voltage [Max] | 400 VAC |
| Termination Style | Spring Terminal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
ST4P3T Series
General Purpose Relay SPDT (1 Form C) 230VAC/DC Coil DIN Rail
