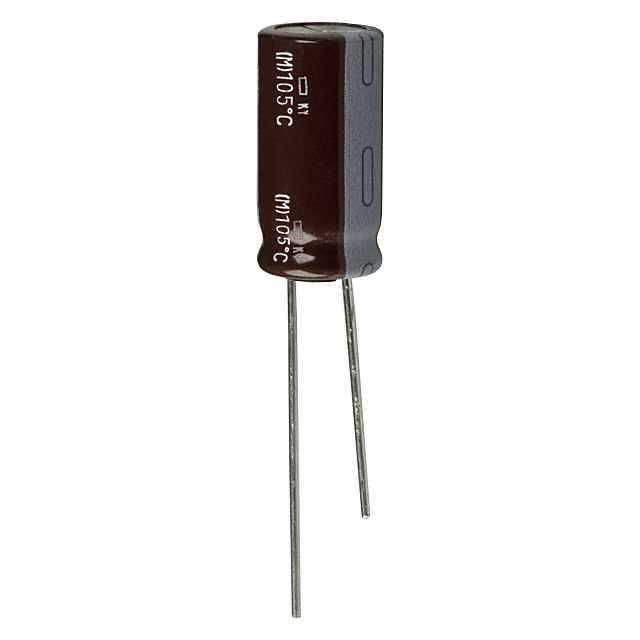

EKY-100ETD222MK20S

Active

Chemi-Con

CAP ALUM 2200UF 20% 10V RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EKY-100ETD222MK20S

Active

Chemi-Con

CAP ALUM 2200UF 20% 10V RADIAL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EKY-100ETD222MK20S

Applications	General Purpose
Capacitance	2200 µF
Height - Seated (Max) [Max]	21.5 mm
Height - Seated (Max) [Max]	0.846 in
Impedance	35 mOhms
Lead Spacing	5 mm
Lead Spacing	0.197 in
Lifetime @ Temp.	8000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can
Polarization	Polar
Ripple Current @ Low Frequency	1.425 A
Size / Dimension [diameter]	0.492 in
Size / Dimension [diameter]	12.5 mm
Tolerance	20 %
Voltage - Rated	10 V

EKY-100E Series

Part	Ripple Current @ Low Frequency	Tolerance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Lifetime @ Temp.	Lead Spacing	Lead Spacing	Capacitance	Size / Dimension [diameter]	Size / Dimension [diameter]	Impedance	Operating Temperature [Min]	Operating Temperature [Max]	Polarization	Mounting Type	Package / Case	Ripple Current @ High Frequency	Voltage - Rated	Applications	Height - Seated (Max)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Chemi-Con EKY-100ELL681MH15D	504 mA	20 %	16.5 mm	16.51 mm	6000 Hrs	3.5 mm	0.138 in	680 µF	0.315 "	8 mm	87 mOhms	-40 °C	105 ░C	Polar	Through Hole	Radial Can	840 mA	10 V	General Purpose
Chemi-Con EKY-100ELL681MJC5S	519 mA	20 %			6000 Hrs	5 mm	0.197 in	680 µF	0.394 in	10 mm	80 mOhms	-40 °C	105 ░C	Polar	Through Hole	Radial Can	865 mA	10 V	General Purpose	14 mm	0.551 "
Chemi-Con EKY-100ETD102MH20D	630 mA	20 %			6000 Hrs	3.5 mm	0.138 in	1000 µF	0.315 "	8 mm	69 mOhms	-40 °C	105 ░C	Polar	Through Hole	Radial Can	1.05 A	10 V	General Purpose		0.846 in	21.5 mm
Chemi-Con EKY-100ETD222MK20S	1.425 A	20 %			8000 Hrs	5 mm	0.197 in	2200 µF	0.492 in	12.5 mm	35 mOhms	-40 °C	105 ░C	Polar	Through Hole	Radial Can		10 V	General Purpose		0.846 in	21.5 mm
Chemi-Con EKY-100ELL101ME11D	84 mA	20 %			4000 Hrs	2 mm	0.079 in	100 µF	0.197 "	5 mm	580 mOhms	-40 °C	105 ░C	Polar	Through Hole	Radial Can	210 mA	10 V	General Purpose		0.492 in	12.5 mm
Chemi-Con EKY-100ETD221MF11D	170 mA	20 %			4000 Hrs	2.5 mm	0.098 in	220 µF	0.248 in	6.3 mm	220 mOhms	-40 °C	105 ░C	Polar	Through Hole	Radial Can	340 mA	10 V	General Purpose		0.492 in	12.5 mm
Chemi-Con EKY-100ELL272MM15S	1.6575 A	20 %	16.5 mm	16.51 mm	8000 Hrs	7.5 mm	0.295 in	2700 µF	0.709 "	18 mm	43 mOhms	-40 °C	105 ░C	Polar	Through Hole	Radial Can	2.21 A	10 V	General Purpose
Chemi-Con EKY-100ELL471MHB5D	320 mA	20 %	13 mm	0.512 "	6000 Hrs	3.5 mm	0.138 in	470 µF	0.315 "	8 mm	130 mOhms	-40 °C	105 ░C	Polar	Through Hole	Radial Can	640 mA	10 V	General Purpose
Chemi-Con EKY-100ELL562MK40S	2.8475 A	20 %			8000 Hrs	5 mm	0.197 in	5.6 mF	0.492 in	12.5 mm	17 mOhms	-40 °C	105 ░C	Polar	Through Hole	Radial Can	3.35 A	10 V	General Purpose			1.634 "	41.5 mm
Chemi-Con EKY-100ETD102MJ16S	726 mA	20 %			6000 Hrs	5 mm	0.197 in	1000 µF	0.394 in	10 mm	60 mOhms	-40 °C	105 ░C	Polar	Through Hole	Radial Can	1.21 A	10 V	General Purpose		0.689 in	17.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.97
		10	$ 0.60
		50	$ 0.45
		100	$ 0.40
	Tape & Box (TB)	500	$ 0.32
		1000	$ 0.30
		1500	$ 0.29
		2500	$ 0.27
		3500	$ 0.26
		5000	$ 0.26
		12500	$ 0.24
		25000	$ 0.23

Description

General part information

EKY-100E Series

2200 µF 10 V Aluminum Electrolytic Capacitors Radial, Can 8000 Hrs @ 105°C
