QDWT-65/25-01-48IN-5

Active

Qualtek

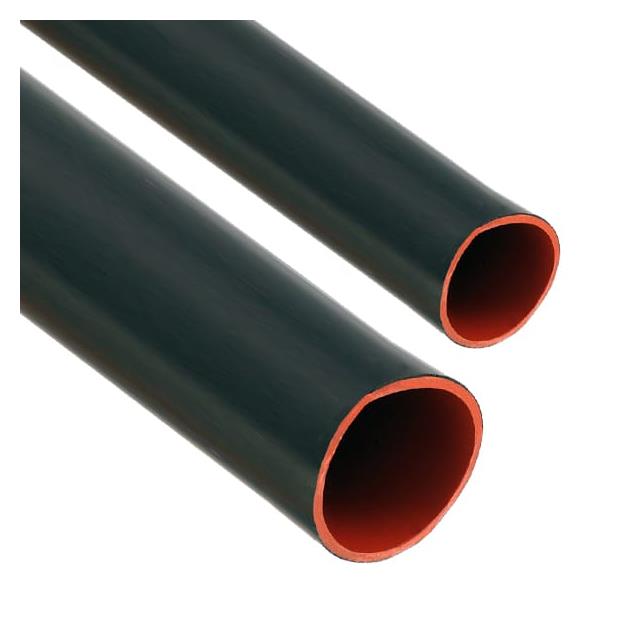

HEATSHRINK 65/25MM-48" BLACK

Search across all available documentation for this part.

Active

Qualtek

HEATSHRINK 65/25MM-48" BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	QDWT-65/25-01-48IN-5

Color	Black
Features	Dual Layer, Semi-Conductive, Shielded
Inner Diameter - Recovered [diameter]	24.99 mm
Inner Diameter - Recovered [diameter]	0.984 in
Inner Diameter - Supplied [diameter]	65 mm
Inner Diameter - Supplied [diameter]	2.559 in
Length [x]	1.22 m
Length [x]	4 ft
Material	Polyolefin (PO)
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-45 °C
Shelf Life	12 Months
Shrink Temperature	100 °C
Shrinkage Ratio [Max]	3
Shrinkage Ratio [Min]	1
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C
Storage/Refrigeration Temperature [Min]	10 °C
Type	Tubing, Insulation

Part	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Length [x]	Length [x]	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Shelf Life	Shrink Temperature	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Color	Type	Material	Features	Operating Temperature [Max]	Operating Temperature [Min]
Qualtek QDWT-65/25-01-48IN-5	24.99 mm	0.984 in	27 °C 80 °F	10 °C	1.22 m	4 ft	65 mm	2.559 in	12 Months	100 °C	1	3	Black	Tubing Insulation	Polyolefin (PO)	Dual Layer Semi-Conductive Shielded	100 °C	-45 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Heat Shrink Tubing, Insulation 2.559" (65.00mm) 3 to 1 Black 4.00' (1.22m)
