0804MC
ActiveCONN TRANSIST TO-3 8POS GOLD
Deep-Dive with AI
Search across all available documentation for this part.
0804MC
ActiveCONN TRANSIST TO-3 8POS GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0804MC |
|---|---|
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám |
| Contact Finish Thickness - Post | 200 µin |
| Contact Finish Thickness - Post | 5.08 µm |
| Contact Material - Mating | Beryllium Copper |
| Contact Material - Post [custom] | Brass |
| Contact Resistance | 20 mOhm |
| Features | Closed Frame |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions or Pins (Grid) | 8 |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Termination | Solder |
| Type | Transistor, TO-3 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 29.35 | |
| 10 | $ 25.70 | |||
| 25 | $ 24.59 | |||
| 50 | $ 23.80 | |||
| 100 | $ 23.01 | |||
| 250 | $ 21.74 | |||
| 450 | $ 21.10 | |||
| Texas Instruments | TUBE | 1 | $ 27.64 | |
| 100 | $ 24.57 | |||
| 250 | $ 20.20 | |||
| 1000 | $ 18.07 | |||
Description
General part information
0804MC Series

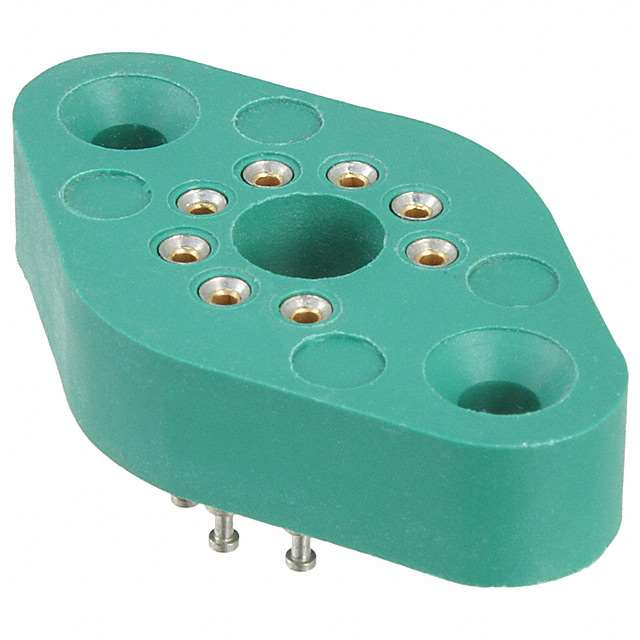

The 0804MC is a high quality socket designed for use with Burr-Brown’s 8-pin TO-3 type products such as the OPA541 and OPA512.
Although not required for use with these products, the 0804MC socket makes interchanging parts easy, especially during design and testing. Its rugged inner contacts provide positive insertion and low contact resistance. Closed contact ends prevent solder and flux contamination of the internal contacts.
The socket body is molded of glass-filled polyester and incorporates counter-sunk mounting holes and hex-nut retaining feature. It accommodates a variety of mounting hardware and mechanical designs.
