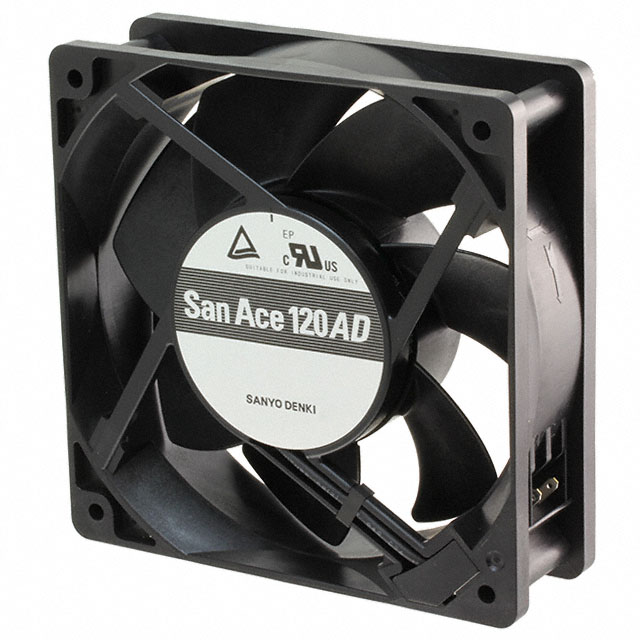

9AD1201H12

Active

Sanyo Denki America Inc.

FAN 120X38MM 90/264VAC

Search across all available documentation for this part.

Active

Sanyo Denki America Inc.

FAN 120X38MM 90/264VAC

Technical Specifications

Parameters and characteristics for this part

Part	RPM	Noise	Voltage - Rated [Min]	Voltage - Rated [Max]	Material - Blade	Bearing Type	Size / Dimension [y]	Size / Dimension [x]	Air Flow	Air Flow	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Width [y]	Power (Watts)	Static Pressure	Static Pressure	Termination	Approval Agency	Features	Weight	Weight	Material - Frame	Fan Type	Voltage Range [Min]	Voltage Range [Max]
Sanyo Denki America Inc. 9AD1201H1H	3250 RPM	42 dB	100 VAC	240 VAC	Plastic	Ball	120 mm	120 mm	106 CFM	2.97 mł/min	-20 C	-20 °C	75 ░C	75 °C	38 mm	4.4 W	84.7 Pa	0.34 in H2O	2 Position Rectangular Connector	CE CSA PSE TUV UL	Locked Rotor Sensor	0.639 lb	289.85 g	Plastic	Tubeaxial	90 VAC	240 VAC
Sanyo Denki America Inc. 9AD1201H11	3250 RPM	42 dB	100 VAC	240 VAC	Plastic	Ball	120 mm	120 mm			-20 C	-20 °C	75 ░C	75 °C	38 mm	4.4 W			2 Position Rectangular Connector			0.644 lb	292.11 g	Plastic	Tubeaxial	90 VAC	264 VAC
Sanyo Denki America Inc. 9AD1201H12	3250 RPM	42 dB	100 VAC	240 VAC	Plastic	Ball	120 mm	120 mm	106 CFM	2.97 mł/min	-20 C	-20 °C	75 ░C	75 °C	38 mm	4.4 W	84.7 Pa	0.34 in H2O	2 Terminals	CE CSA PSE TUV UL		0.639 lb	289.85 g	Plastic	Tubeaxial	90 VAC	240 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 100 ~ 240VAC Square - 120mm L x 120mm H Ball 106.0 CFM (2.97mł/min) 2 Terminals
