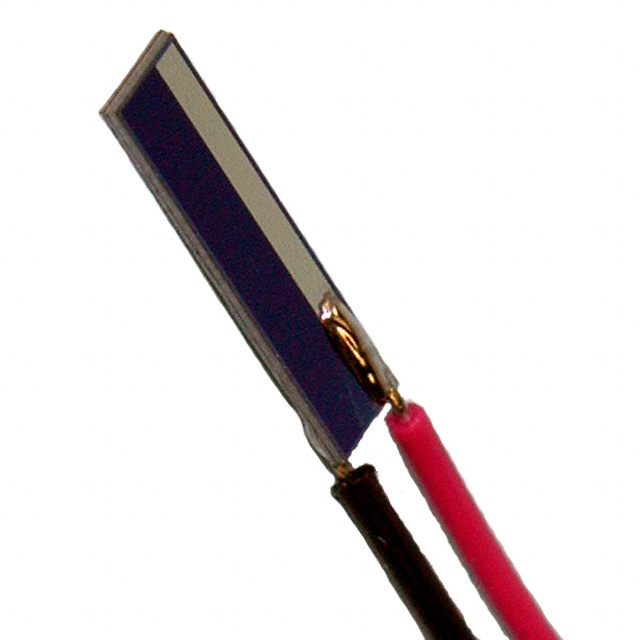

PDB-C607-2
ActiveAdvanced Photonix
SENSOR PHOTODIODE 950NM PVC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PDB-C607-2
ActiveAdvanced Photonix
SENSOR PHOTODIODE 950NM PVC WIRE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PDB-C607-2 |
|---|---|
| Active Area | 14.5 mm² |
| Color - Enhanced | Red |
| Current - Dark (Typ) | 15 nA |
| Mounting Type | Free Hanging |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Chip with 30 Gauge PVC Wire |
| Response Time | 25 ns |
| Spectral Range [Max] | 1100 nm |
| Spectral Range [Min] | 350 nm |
| Voltage - DC Reverse (Vr) (Max) [Max] | 75 V |
| Wavelength | 950 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 36.72 | |
| 10 | $ 29.92 | |||
| 100 | $ 26.00 | |||
Description
General part information
PDB-C607 Series
Photodiode 950nm 25ns Chip with 30 Gauge PVC Wire
