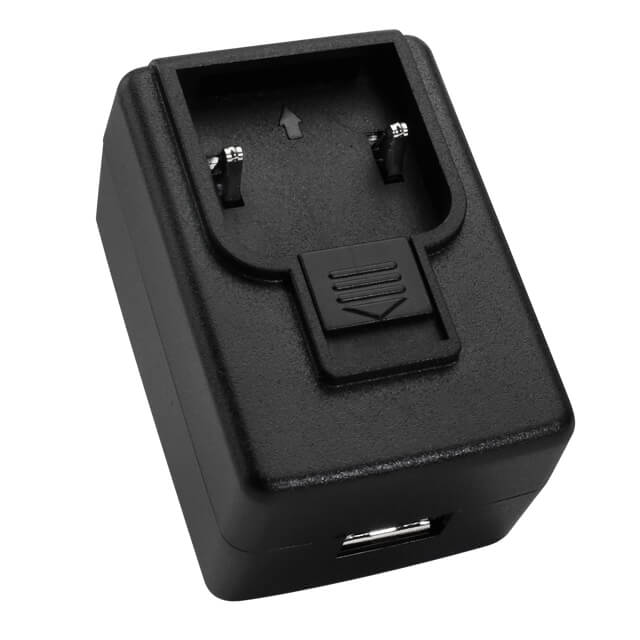

SMM12-6-KB-I38

Active

CUI Inc.

AC/DC WALL MOUNT ADAPTER 6V 12W

Deep-Dive with AI

Search across all available documentation for this part.

SMM12-6-KB-I38

Active

CUI Inc.

AC/DC WALL MOUNT ADAPTER 6V 12W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SMM12-6-KB-I38

Applications	ITE (Commercial), Medical
Approval Agency	TUV, PSE, cULus, CE, FCC
Current - Output (Max) [Max]	2 A
Efficiency	Level VI
Form	Wall Mount (Class II)
Input Connector	Multi-Blade
Input Type	Multi-Blade (Sold Separately)
No Load Power Consumption	100 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Power (Watts)	12 W
Region Utilized	International
Size / Dimension [x]	57 mm
Size / Dimension [x]	2.24 "
Size / Dimension [y]	39 mm
Size / Dimension [y]	1.54 "
Size / Dimension [z]	34 mm
Size / Dimension [z]	1.34 in
Standard Number	60950-1, 60601-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	6 V

SMM12 Series

Part	Voltage - Output	Voltage - Input [Min]	Voltage - Input [Max]	Standard Number	Applications	Region Utilized	No Load Power Consumption	Current - Output (Max) [Max]	Form	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Efficiency	Input Connector	Input Type	Power (Watts)	Approval Agency	Cord Length	Cord Length	Output Connector [diameter]	Output Connector [x]	Output Connector	Polarization
CUI Inc. SMM12-6-KB-I38	6 V	90 VAC	264 VAC	60601-1 60950-1	ITE (Commercial) Medical	International	100 mW	2 A	Wall Mount (Class II)	40 °C	39 mm	57 mm	1.54 "	34 mm	1.34 in	2.24 "	Level VI	Multi-Blade	Multi-Blade (Sold Separately)	12 W	CE cULus FCC PSE TUV
CUI Inc. SMM12-5-4B-P6	5 V	90 VAC	264 VAC	60601-1 60950-1	ITE (Commercial) Medical	International	100 mW	2.4 A	Wall Mount (Class II)	40 °C	39 mm	57 mm	1.54 "	34 mm	1.34 in	2.24 "	Level VI	Multi-Blade (Included)	Multi-Blade (Included)	12 W	CE cULus FCC PSE TUV	1.5 m	59 in	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	Positive Center
CUI Inc. SMM12-5-KB-P6	5 V	90 VAC	264 VAC	60601-1 60950-1	ITE (Commercial) Medical	International	100 mW	2.4 A	Wall Mount (Class II)	40 °C	39 mm	57 mm	1.54 "	34 mm	1.34 in	2.24 "	Level VI	Multi-Blade	Multi-Blade (Sold Separately)	12 W	CE cULus FCC PSE TUV	1.5 m	59 in	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	Positive Center
CUI Inc. SMM12-15-4B-P6	15 VDC	90 VAC	264 VAC	60601-1 60950-1	ITE (Commercial) Medical	International	100 mW	800 mA	Wall Mount (Class II)	40 °C	39 mm	57 mm	1.54 "	34 mm	1.34 in	2.24 "	Level VI	Multi-Blade (Included)	Multi-Blade (Included)	12 W	CE cULus FCC PSE TUV	1.5 m	59 in	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	Positive Center
CUI Inc. SMM12-12-4W-P6	12 V	90 VAC	264 VAC	60601-1 60950-1	ITE (Commercial) Medical	International	100 mW	1 A	Wall Mount (Class II)	40 °C	39 mm	57 mm	1.54 "	34 mm	1.34 in	2.24 "	Level VI	Multi-Blade (Included)	Multi-Blade (Included)	12 W	CE cULus FCC PSE TUV	1.5 m	59 in	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	Positive Center
CUI Inc. SMM12-18-KB-P5	18 V	90 VAC	264 VAC	60601-1 60950-1	ITE (Commercial) Medical	International	100 mW	660 mA	Wall Mount (Class II)	40 °C	39 mm	57 mm	1.54 "	34 mm	1.34 in	2.24 "	Level VI	Multi-Blade	Multi-Blade (Sold Separately)	12 W	CE cULus FCC PSE TUV	1.5 m	59 in	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	Positive Center
CUI Inc. SMM12-9-4W-I38	9 V	90 VAC	264 VAC	60601-1 60950-1	ITE (Commercial) Medical	International	100 mW	1.33 A	Wall Mount (Class II)	40 °C	39 mm	57 mm	1.54 "	34 mm	1.34 in	2.24 "	Level VI	Multi-Blade (Included)	Multi-Blade (Included)	12 W	CE cULus FCC PSE TUV
CUI Inc. SMM12-9-4W-P6	9 V	90 VAC	264 VAC	60601-1 60950-1	ITE (Commercial) Medical	International	100 mW	1.33 A	Wall Mount (Class II)	40 °C	39 mm	57 mm	1.54 "	34 mm	1.34 in	2.24 "	Level VI	Multi-Blade (Included)	Multi-Blade (Included)	12 W	CE cULus FCC PSE TUV	1.5 m	59 in	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	Positive Center
CUI Inc. SMM12-15-4W-I38	15 VDC	90 VAC	264 VAC	60601-1 60950-1	ITE (Commercial) Medical	International	100 mW	800 mA	Wall Mount (Class II)	40 °C	39 mm	57 mm	1.54 "	34 mm	1.34 in	2.24 "	Level VI	Multi-Blade (Included)	Multi-Blade (Included)	12 W	CE cULus FCC PSE TUV
CUI Inc. SMM12-12-KW-P5	12 V	90 VAC	264 VAC	60601-1 60950-1	ITE (Commercial) Medical	International	100 mW	1 A	Wall Mount (Class II)	40 °C	39 mm	57 mm	1.54 "	34 mm	1.34 in	2.24 "	Level VI	Multi-Blade	Multi-Blade (Sold Separately)	12 W	CE cULus FCC PSE TUV	1.5 m	59 in	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	Positive Center

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	280	$ 11.04

Description

General part information

SMM12 Series

6V 12 W AC/DC External Wall Mount (Class II) Adapter Multi-Blade (Sold Separately) Input
