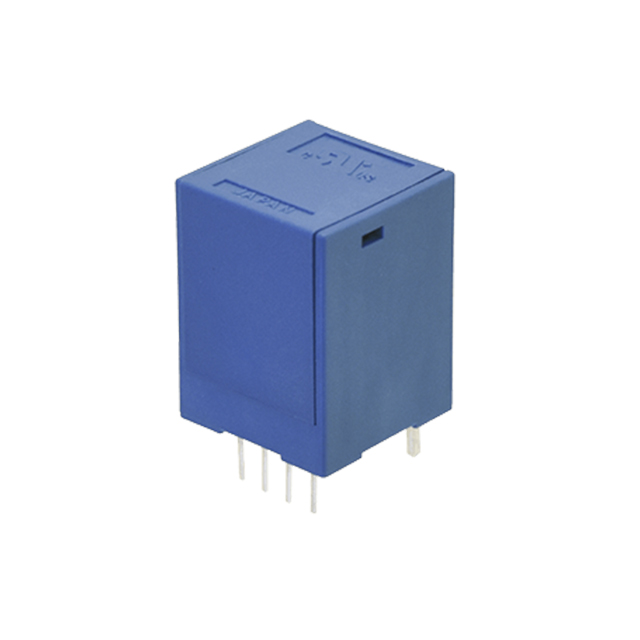

CS1050BL

Active

CUI Devices

CURRENT SENSOR,OPEN LOOP,10A,+/-

Search across all available documentation for this part.

Active

CUI Devices

CURRENT SENSOR,OPEN LOOP,10A,+/-

Technical Specifications

Parameters and characteristics for this part

Specification	CS1050BL

Accuracy	4.9 %
Current - Sensing	10 A
Current - Supply (Max) [Max]	25 mA
For Measuring	AC
Frequency	DC ~ 55kHz
Linearity	0.5 %
Mounting Type	Through Hole
Number of Channels	1
Operating Temperature [Max] [custom]	158 °F
Operating Temperature [Min] [custom]	-10 °C
Output	Voltage, Ratiometric
Package / Case	Module
Polarization	Bidirectional
Response Time	7 µs
Sensor Type	Open Loop
Voltage - Supply [Max]	5.25 V
Voltage - Supply [Min]	-4.75 V

Part	Polarization	Mounting Type	Frequency	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Current - Supply (Max) [Max]	Accuracy	Response Time	Package / Case	Current - Sensing	Number of Channels	Sensor Type	For Measuring	Linearity	Output
CUI Devices CS1050BL	Bidirectional	Through Hole	DC ~ 55kHz	5.25 V	-4.75 V	-10 °C	158 °F	25 mA	4.9 %	7 µs	Module	10 A	1	Open Loop	AC	0.5 %	Ratiometric Voltage

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	50	$ 26.69

General part information

Current Sensor 10A 1 Channel Open Loop Bidirectional Module
