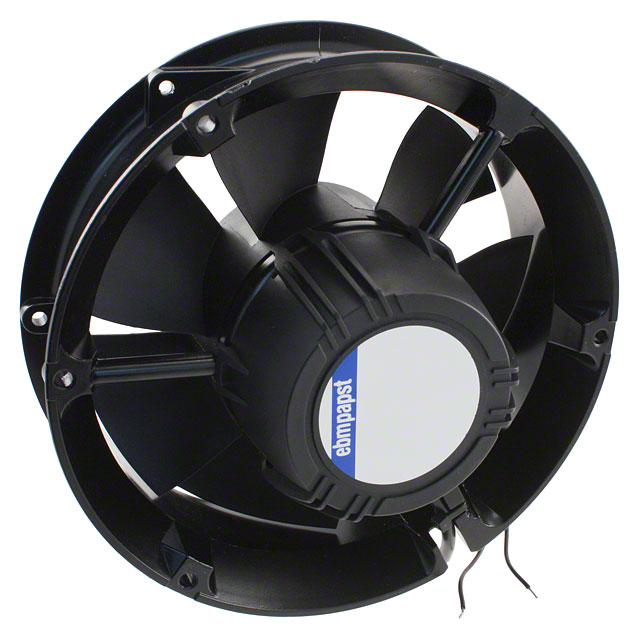

AC6200NM

Active

ebm-papst Inc.

FAN AXIAL 172X51MM 85/265VAC

Search across all available documentation for this part.

Active

ebm-papst Inc.

FAN AXIAL 172X51MM 85/265VAC

Technical Specifications

Parameters and characteristics for this part

Specification	AC6200NM

Approval Agency	UL, VDE, CSA
Bearing Type	Ball
Fan Type	Tubeaxial
Features	Locked Rotor Protection, Electronic Commutation (EC)
Ingress Protection	IP54 - Dust Protected, Water Resistant
Lifetime @ Temp.	80000 Hrs
Material - Blade	Polyamide (PA), Nylon, Fiberglass Reinforced
Material - Frame	Aluminum
Noise	50 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	14 Watts
RPM	2850 RPM
Size / Dimension	Round
Size / Dimension [diameter]	172 mm
Termination	2 Wire Leads
Voltage - Rated	115 VAC
Voltage Range [Max]	265 VAC
Voltage Range [Min]	85 VAC
Weight	907.2 g
Weight	2 lbs
Width [y]	51 mm

Part	Size / Dimension	Size / Dimension [diameter]	Features	Power (Watts)	Approval Agency	RPM	Width [y]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Ingress Protection	Material - Blade	Voltage Range [Max]	Voltage Range [Min]	Material - Frame	Bearing Type	Fan Type	Lifetime @ Temp.	Noise	Voltage - Rated	Weight	Weight
ebm-papst Inc. AC6200NM	Round	172 mm	Electronic Commutation (EC) Locked Rotor Protection	14 Watts	CSA UL VDE	2850 RPM	51 mm	-20 °C	70 °C	-20 C	70 °C	2 Wire Leads	IP54 - Dust Protected Water Resistant	Fiberglass Reinforced Nylon Polyamide (PA)	265 VAC	85 VAC	Aluminum	Ball	Tubeaxial	80000 Hrs	50 dB(A)	115 VAC	907.2 g	2 lbs

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 115VAC Round - 172mm Dia Ball 206.0 CFM (5.77m³/min) 2 Wire Leads
