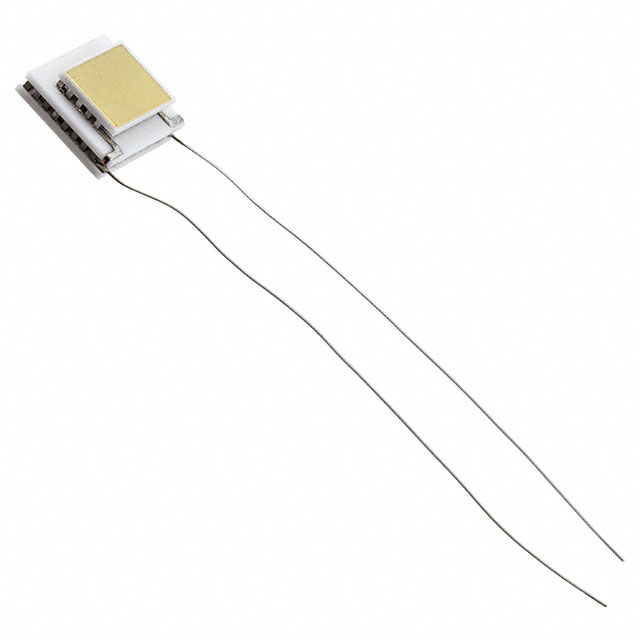

NL2012T-01AC

Active

Marlow Industries, Inc.

MULTISTAGE TEM 10.97X9.88X3.76MM

Search across all available documentation for this part.

Active

Marlow Industries, Inc.

MULTISTAGE TEM 10.97X9.88X3.76MM

Technical Specifications

Parameters and characteristics for this part

Specification	NL2012T-01AC

Current - Max [Max]	1.2 A
Delta Tmax @ Th	77 °C
Features	Exterior Metallization (Both Sides), Lead Wires
Height [z]	3.84 mm
Number of Stages	2
Qmax @ Th	2.4 W
Resistance	4.18 Ohms
Size / Dimension [x]	10.97 mm
Size / Dimension [y]	9.88 mm
Voltage - Max [Max]	5.4 V

Part	Features	Number of Stages	Voltage - Max [Max]	Current - Max [Max]	Delta Tmax @ Th	Qmax @ Th	Height [z]	Resistance	Size / Dimension [x]	Size / Dimension [y]
Marlow Industries, Inc. NL2012T-03AC	Lead Wires	2	5.4 V	1.2 A	77 °C	2.4 W	3.78 mm	4.18 Ohms	10.97 mm	9.88 mm
Marlow Industries, Inc. NL2012T-01AC	Exterior Metallization (Both Sides) Lead Wires	2	5.4 V	1.2 A	77 °C	2.4 W	3.84 mm	4.18 Ohms	10.97 mm	9.88 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1008	$ 42.18

General part information

Peltier Module 2.4W @ 27°C 1.2 A 85°C
