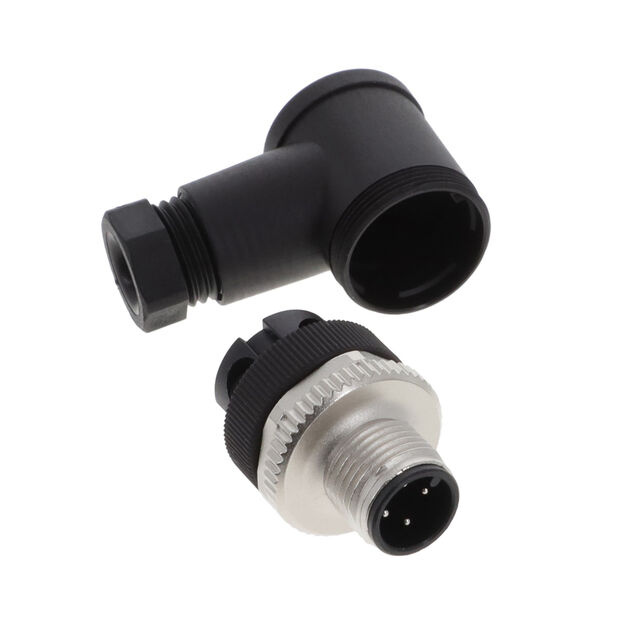

V1S-W-BK

Active

PEPPERL+FUCHS

CONN PLUG MALE 4P COPPER SCREW

Search across all available documentation for this part.

Active

PEPPERL+FUCHS

CONN PLUG MALE 4P COPPER SCREW

Technical Specifications

Parameters and characteristics for this part

Specification	V1S-W-BK

Applications	Industrial Automation
Backshell Material, Plating	Polybutylene Terephthalate (PBT)
Cable Opening [diameter]	6 mm, 4 mm
Cable Opening [diameter]	0.236 in, 0.157 in
Color	Black, Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Copper Tin Zinc
Contact Material	Copper Zinc
Current Rating (Amps)	4 A
Features	Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Positions	4
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Material	Copper Zinc
Shell Size - Insert	M12-4
Shielding	Unshielded
Termination	Screw
Voltage Rating	250 VAC

Part	Contact Material	Number of Positions	Current Rating (Amps)	Shell Size - Insert	Applications	Primary Material	Shell Material	Orientation	Connector Type	Mounting Type	Cable Opening [diameter]	Cable Opening [diameter]	Features	Shielding	Voltage Rating	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Backshell Material, Plating	Color	Contact Finish - Mating	Ingress Protection
PEPPERL+FUCHS V1S-W-BK	Copper Zinc	4	4 A	M12-4	Industrial Automation	Metal	Copper Zinc	Keyed	Male Pins Plug	Free Hanging (In-Line) Right Angle	4 mm 6 mm	0.157 in 0.236 in	Backshell	Unshielded	250 VAC	Screw	85 °C	-40 °C	Polybutylene Terephthalate (PBT)	Black Silver	Copper Tin Zinc	IP67 - Dust Tight Waterproof

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Plug, Male Pins Screw
