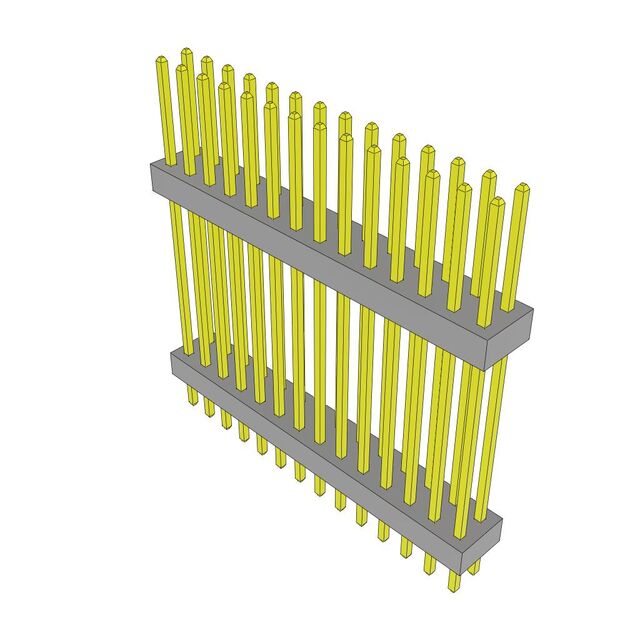

TW-14-12-L-D-700-120

Active

Samtec Inc.

CONN BRD STACK 2.00 28POS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet TW Datasheet +1

TW-14-12-L-D-700-120

Active

Samtec Inc.

CONN BRD STACK 2.00 28POS

Deep-Dive with AI

DocumentsDatasheet TW Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TW-14-12-L-D-700-120

Color	Black
Contact Finish - Post (Mating)	Gold
Contact Finish Thickness - Post (Mating)	0.25 Ám
Contact Finish Thickness - Post (Mating)	10 Áin
Length - Overall Pin [x]	28.194 mm
Length - Overall Pin [x]	1.11 in
Length - Post (Mating) [x]	0.29 in
Length - Post (Mating) [x]	7.366 mm
Length - Stack Height [x]	0.7 in
Length - Stack Height [x]	17.78 mm
Length - Tail [x]	0.12 in
Length - Tail [x]	3.048 mm
Mounting Type	Through Hole
Number of Positions	28
Number of Rows	2
Pitch [x]	0.079 in
Pitch [x]	2 mm
Row Spacing	2 mm
Row Spacing	0.079 in
Termination	Solder

TW-14-12 Series

Part	Color	Length - Overall Pin [x]	Length - Overall Pin [x]	Termination	Row Spacing	Row Spacing	Number of Positions	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Pitch [x]	Pitch [x]	Length - Tail	Length - Tail	Number of Rows	Mounting Type	Contact Finish - Post (Mating)	Length - Stack Height [x]	Length - Stack Height [x]	Length - Tail [x]	Length - Tail [x]	Length - Tail [custom]	Length - Tail [custom]
Samtec Inc. TW-14-12-L-D-728-190	Black	28.194 mm	1.11 in	Solder	2 mm	0.079 in	28	0.192 in	4.877 mm	0.25 Ám	10 Áin	0.079 in	2 mm	4.826 mm	0.19 in	2	Through Hole	Gold
Samtec Inc. TW-14-12-G-D-655-250	Black	28.194 mm	1.11 in	Solder	2 mm	0.079 in	28			0.51 Ám	20 Áin	0.079 in	2 mm			2	Through Hole	Gold	16.637 mm	0.655 in	0.25 in	6.35 mm
Samtec Inc. TW-14-12-L-D-600-320	Black	28.194 mm	1.11 in	Solder	2 mm	0.079 in	28	0.19 in	4.826 mm	0.25 Ám	10 Áin	0.079 in	2 mm	8.128 mm	0.32 in	2	Through Hole	Gold	15.24 mm	0.6 in
Samtec Inc. TW-14-12-L-D-700-120	Black	28.194 mm	1.11 in	Solder	2 mm	0.079 in	28	0.29 in	7.366 mm	0.25 Ám	10 Áin	0.079 in	2 mm			2	Through Hole	Gold	17.78 mm	0.7 in	0.12 in	3.048 mm
Samtec Inc. TW-14-12-G-D-600-250	Black	28.194 mm	1.11 in	Solder	2 mm	0.079 in	28	0.26 in	6.604 mm	0.51 Ám	20 Áin	0.079 in	2 mm			2	Through Hole	Gold	15.24 mm	0.6 in	0.25 in	6.35 mm
Samtec Inc. TW-14-12-G-D-520-170	Black	28.194 mm	1.11 in	Solder	2 mm	0.079 in	28	0.42 in	10.668 mm	0.51 Ám	20 Áin	0.079 in	2 mm	4.318 mm	0.17 in	2	Through Hole	Gold	13.2 mm	0.52 in
Samtec Inc. TW-14-12-G-D-585-180	Black	28.194 mm	1.11 in	Solder	2 mm	0.079 in	28	0.345 in	8.763 mm	0.51 Ám	20 Áin	0.079 in	2 mm			2	Through Hole	Gold	14.859 mm	0.585 in	0.18 in	4.572 mm
Samtec Inc. TW-14-12-T-S-630-070
Samtec Inc. TW-14-12-G-D-665-255	Black	28.194 mm	1.11 in	Solder	2 mm	0.079 in	28	0.19 in	4.826 mm	0.51 Ám	20 Áin	0.079 in	2 mm			2	Through Hole	Gold	16.9 mm	0.665 in			0.255 in	6.477 mm
Samtec Inc. TW-14-12-L-D-905-100	Black	28.194 mm	1.11 in	Solder	2 mm	0.079 in	28	0.105 in	2.667 mm	0.25 Ám	10 Áin	0.079 in	2 mm			2	Through Hole	Gold	22.987 mm	0.905 in	0.1 "	2.54 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.37
