0190190003

Active

Molex

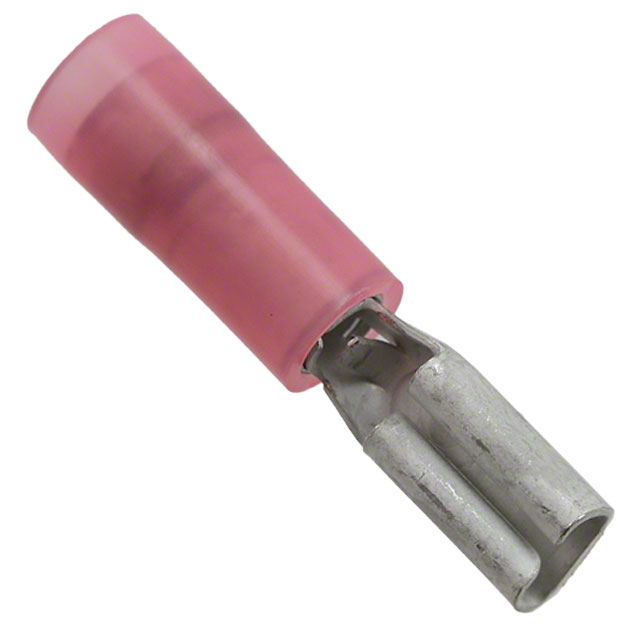

QUICK DISCONNECT TERMINAL 18-22AWG BRASS RED F 20.04MM ELECTRO TIN AVIKRIMP™ T/R

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 0190440069 Drawing/Datasheet

0190190003

Active

Molex

QUICK DISCONNECT TERMINAL 18-22AWG BRASS RED F 20.04MM ELECTRO TIN AVIKRIMP™ T/R

Deep-Dive with AI

DocumentsDatasheet 0190440069 Drawing/Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0190190003

Color	Red
Contact Finish	Tin
Contact Material	Brass
Gender	Female
Insulation	Non-Mating End Insulated
Insulation Diameter [diameter]	2.92 mm
Insulation Diameter [diameter]	0.115 in
Length - Overall [x]	20.04 mm
Length - Overall [x]	0.789 in
Mounting Type	Free Hanging (In-Line)
Tab Length	6.35 mm
Tab Length	0.25 in
Tab Thickness	0.02 "
Tab Thickness	0.51 mm
Tab Width	2.79 mm
Tab Width	0.11 "
Terminal Type	Standard
Termination	Crimp
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	17.5 AWG

019019 Series

Part	Gender	Tab Length	Tab Length	Color	Contact Material	Wire Gauge [Max]	Wire Gauge [Min]	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Tab Width	Tab Width	Termination	Insulation	Contact Finish	Terminal Type	Mounting Type	Tab Thickness	Tab Thickness	Length - Overall [x]	Length - Overall [x]	Length - Overall	Length - Overall
Molex 0190190003	Female	6.35 mm	0.25 in	Red	Brass	22 AWG	17.5 AWG	2.92 mm	0.115 in	2.79 mm	0.11 "	Crimp	Non-Mating End Insulated	Tin	Standard	Free Hanging (In-Line)	0.02 "	0.51 mm	20.04 mm	0.789 in
Molex 0190190021	Female	6.35 mm	0.25 in	Red	Brass	22 AWG	17.5 AWG	2.92 mm	0.115 in	5.21 mm	0.205 in	Crimp	Non-Mating End Insulated	Electro-Tin	Standard	Free Hanging (In-Line)	0.02 "	0.51 mm	20.04 mm	0.789 in
Molex 0190190039
Molex 0190190024	Female	6.35 mm	0.25 in	Blue	Brass			3.51 mm	0.138 in	2.79 mm	0.11 "	Crimp	Non-Mating End Insulated	Electro-Tin	Standard	Free Hanging (In-Line)	0.02 "	0.51 mm	20.04 mm	0.789 in
Molex 0190190080	Female	6.35 mm	0.25 in	Blue	Brass			3.51 mm	0.138 in	4.75 mm	0.187 in	Crimp	Non-Mating End Insulated	Tin	Standard	Free Hanging (In-Line)	0.032 in	0.81 mm	20.04 mm	0.789 in
Molex 0190190119	Female	6.35 mm	0.25 in	Red	Brass	22 AWG	17.5 AWG	2.92 mm	0.115 in	2.79 mm	0.11 "	Crimp	Non-Mating End Insulated	Tin	Standard	Free Hanging (In-Line)	0.032 in	0.81 mm	20.04 mm	0.789 in
Molex 0190190031	Female	7.87 mm	0.31 in	Blue	Brass			3.51 mm	0.138 in	6.35 mm	0.25 in	Crimp	Non-Mating End Insulated	Tin	Standard	Free Hanging (In-Line)	0.032 in	0.81 mm			0.865 in	21.97 mm
Molex 0190190122	Female	7.87 mm	0.31 in	Red	Brass	22 AWG	17.5 AWG	2.92 mm	0.115 in	6.35 mm	0.25 in	Crimp	Non-Mating End Insulated	Electro-Tin	Standard	Free Hanging (In-Line)	0.032 in	0.81 mm			0.865 in	21.97 mm
Molex 0190190063	Female	6.35 mm	0.25 in	Blue	Brass			3.51 mm	0.138 in	5.21 mm	0.205 in	Crimp	Non-Mating End Insulated	Electro-Tin	Standard	Free Hanging (In-Line)	0.032 in	0.81 mm	20.04 mm	0.789 in
Molex 0190190075	Female	6.35 mm	0.25 in	Red	Brass	22 AWG	17.5 AWG	2.92 mm	0.115 in	2.79 mm	0.11 "	Crimp	Non-Mating End Insulated	Electro-Tin	Standard	Free Hanging (In-Line)	0.032 in	0.81 mm	20.04 mm	0.789 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.59
		10	$ 0.50
		100	$ 0.39
	Tape & Reel (TR)	1500	$ 0.30
		3000	$ 0.28
		7500	$ 0.27
		10500	$ 0.25
		15000	$ 0.25
		37500	$ 0.24

Description

General part information

019019 Series

0.110" (2.79mm) Quick Connect Female 18-22 AWG Crimp Connector Non-Mating End Insulated
