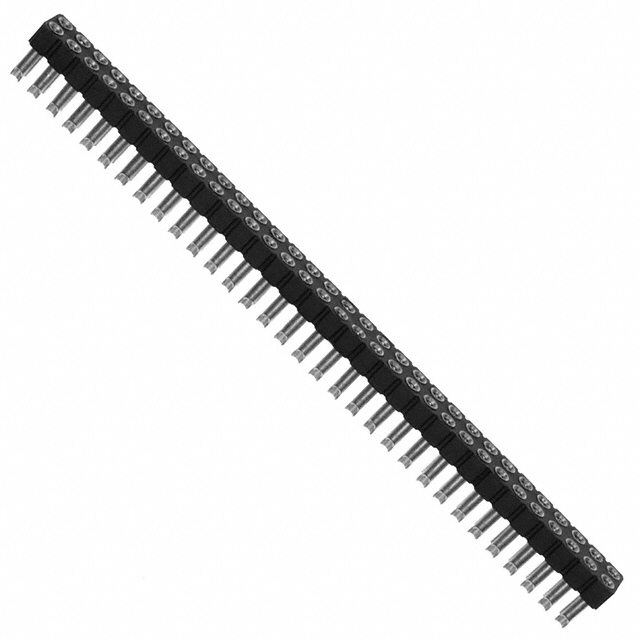

429-43-264-41-540000

Active

Mill-Max Manufacturing Corp.

CONN RCPT 64POS 0.1 GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

429-43-264-41-540000

Active

Mill-Max Manufacturing Corp.

CONN RCPT 64POS 0.1 GOLD PCB

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	429-43-264-41-540000

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Length - Post	0.18 in
Contact Length - Post	4.57 mm
Contact Material	Beryllium Copper
Contact Shape	Circular
Contact Type	Female Socket
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	64
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in

429-43 Series

Part	Contact Finish - Mating	Pitch - Mating	Pitch - Mating	Insulation Material	Connector Type	Contact Length - Post	Contact Length - Post	Mounting Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Number of Positions Loaded	Number of Rows	Current Rating (Amps)	Contact Shape	Insulation Color	Fastening Type	Number of Positions	Material Flammability Rating	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]
Mill-Max Manufacturing Corp. 429-43-264-41-540000	Gold	0.1 in	2.54 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Receptacle	0.18 in	4.57 mm	Through Hole	200 µin	5.08 µm	-55 °C	125 °C	Female Socket	All	2	3 A	Circular	Black	Push-Pull	64	UL94 V-0	Beryllium Copper	30 Áin	0.76 Ám	Tin	2.54 mm	0.1 in
Mill-Max Manufacturing Corp. 429-43-254-41-540000	Gold	0.1 in	2.54 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Receptacle	0.18 in	4.57 mm	Through Hole	200 µin	5.08 µm	-55 °C	125 °C	Female Socket	All	2	3 A	Circular	Black	Push-Pull	54	UL94 V-0	Beryllium Copper	30 Áin	0.76 Ám	Tin	2.54 mm	0.1 in
Mill-Max Manufacturing Corp. 429-43-218-41-540000	Gold	0.1 in	2.54 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Receptacle	0.18 in	4.57 mm	Through Hole	200 µin	5.08 µm	-55 °C	125 °C	Female Socket	All	2	3 A	Circular	Black	Push-Pull	18	UL94 V-0	Beryllium Copper	30 Áin	0.76 Ám	Tin	2.54 mm	0.1 in
Mill-Max Manufacturing Corp. 429-43-228-41-540000	Gold	0.1 in	2.54 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Receptacle	0.18 in	4.57 mm	Through Hole	200 µin	5.08 µm	-55 °C	125 °C	Female Socket	All	2	3 A	Circular	Black	Push-Pull	28	UL94 V-0	Beryllium Copper	30 Áin	0.76 Ám	Tin	2.54 mm	0.1 in
Mill-Max Manufacturing Corp. 429-43-210-41-540000	Gold	0.1 in	2.54 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Receptacle	0.18 in	4.57 mm	Through Hole	200 µin	5.08 µm	-55 °C	125 °C	Female Socket	All	2	3 A	Circular	Black	Push-Pull	10	UL94 V-0	Beryllium Copper	30 Áin	0.76 Ám	Tin	2.54 mm	0.1 in
Mill-Max Manufacturing Corp. 429-43-246-41-540000	Gold	0.1 in	2.54 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Receptacle	0.18 in	4.57 mm	Through Hole	200 µin	5.08 µm	-55 °C	125 °C	Female Socket	All	2	3 A	Circular	Black	Push-Pull	46	UL94 V-0	Beryllium Copper	30 Áin	0.76 Ám	Tin	2.54 mm	0.1 in
Mill-Max Manufacturing Corp. 429-43-248-41-540000	Gold	0.1 in	2.54 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Receptacle	0.18 in	4.57 mm	Through Hole	200 µin	5.08 µm	-55 °C	125 °C	Female Socket	All	2	3 A	Circular	Black	Push-Pull	48	UL94 V-0	Beryllium Copper	30 Áin	0.76 Ám	Tin	2.54 mm	0.1 in
Mill-Max Manufacturing Corp. 429-43-212-41-540000	Gold	0.1 in	2.54 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Receptacle	0.18 in	4.57 mm	Through Hole	200 µin	5.08 µm	-55 °C	125 °C	Female Socket	All	2	3 A	Circular	Black	Push-Pull	12	UL94 V-0	Beryllium Copper	30 Áin	0.76 Ám	Tin	2.54 mm	0.1 in
Mill-Max Manufacturing Corp. 429-43-244-41-540000	Gold	0.1 in	2.54 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Receptacle	0.18 in	4.57 mm	Through Hole	200 µin	5.08 µm	-55 °C	125 °C	Female Socket	All	2	3 A	Circular	Black	Push-Pull	44	UL94 V-0	Beryllium Copper	30 Áin	0.76 Ám	Tin	2.54 mm	0.1 in
Mill-Max Manufacturing Corp. 429-43-238-41-540000	Gold	0.1 in	2.54 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Receptacle	0.18 in	4.57 mm	Through Hole	200 µin	5.08 µm	-55 °C	125 °C	Female Socket	All	2	3 A	Circular	Black	Push-Pull	38	UL94 V-0	Beryllium Copper	30 Áin	0.76 Ám	Tin	2.54 mm	0.1 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	6	$ 23.60
		12	$ 20.66
		30	$ 19.77
		42	$ 19.13
		150	$ 18.50
		300	$ 17.48

Description

General part information

429-43 Series

64 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold
