E3033S.41.02
ActivePrysmian Group

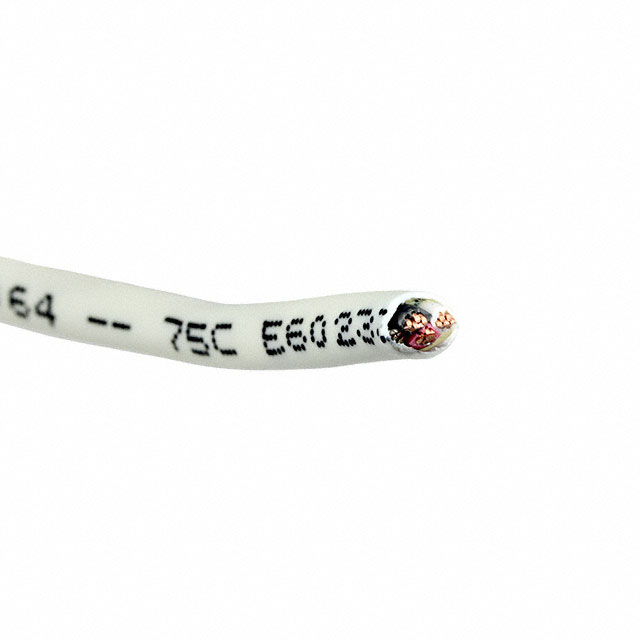

CABLE 3COND 18AWG WHITE 25'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | E3033S.41.02 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Annealed Bare |
| Conductor Strand [custom] | 26 AWG |
| Conductor Strand [custom] | 7 |
| Jacket (Insulation) Diameter [diameter] | 4.22 mm |
| Jacket (Insulation) Diameter [diameter] | 0.166 in |
| Jacket (Insulation) Material | Plenum, Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.015 in |
| Jacket (Insulation) Thickness | 0.381 mm |
| Length | 1000 ft |
| Length | 304.8 m |
| Length [x] | 25 ft |
| Length [x] | 7.62 m |
| Number of Conductors | 3 |
| Operating Temperature [Max] | 75 ░C |
| Operating Temperature [Min] | 0 °C |
| Ratings | ASTM B-3 |
| Usage | Sound, Security, Alarm |
| Voltage | 300 V |
| Wire Gauge | 18 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 14.48 | |
| 5 | $ 11.85 | |||
| 10 | $ 9.21 | |||
| 1000 | $ 0.25 | |||
| 2000 | $ 0.24 | |||
| 3000 | $ 0.23 | |||
| 5000 | $ 0.22 | |||
| 7000 | $ 0.22 | |||
| 10000 | $ 0.21 | |||
| 25000 | $ 0.20 | |||
| 50000 | $ 0.19 | |||
Description
General part information
E3033S Series
3 Conductor Multi-Conductor Cable White 18 AWG 25.00' (7.62m)
