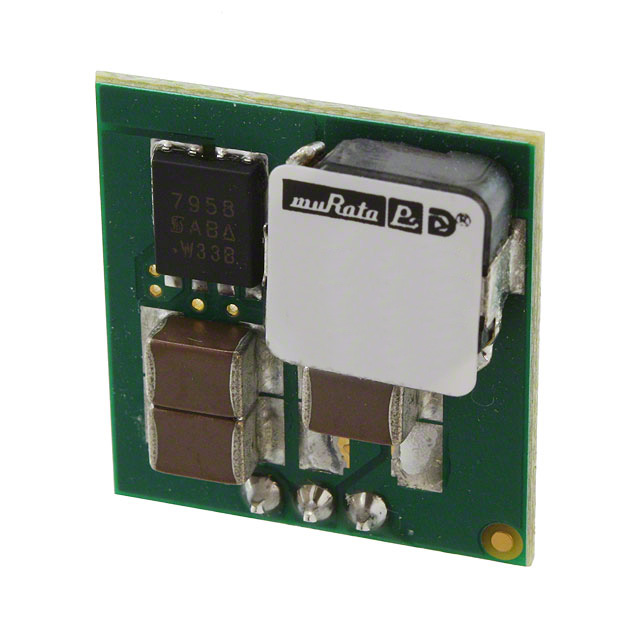

78SRH-5.2/2-C
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 5.25V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
78SRH-5.2/2-C
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 5.25V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 78SRH-5.2/2-C |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 2 A |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 3-SIP Module |
| Size / Dimension [x] | 21.6 mm |
| Size / Dimension [x] | 0.85 " |
| Size / Dimension [y] | 20.3 mm |
| Size / Dimension [y] | 0.8 in |
| Size / Dimension [z] | 0.28 " |
| Size / Dimension [z] | 7.1 mm |
| Supplier Device Package | Module |
| Type | Linear Regulator Replacement |
| Voltage - Input (Max) [Max] | 32 V |
| Voltage - Input (Min) [Min] | 8 V |
| Voltage - Output 1 | 5.25 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 16.11 | |
| 5 | $ 14.09 | |||
| 10 | $ 12.47 | |||
| 25 | $ 11.90 | |||
Description
General part information
78SRH Series
Linear Regulator Replacement DC DC Converter 1 Output 5.25V 2A 8V - 32V Input
