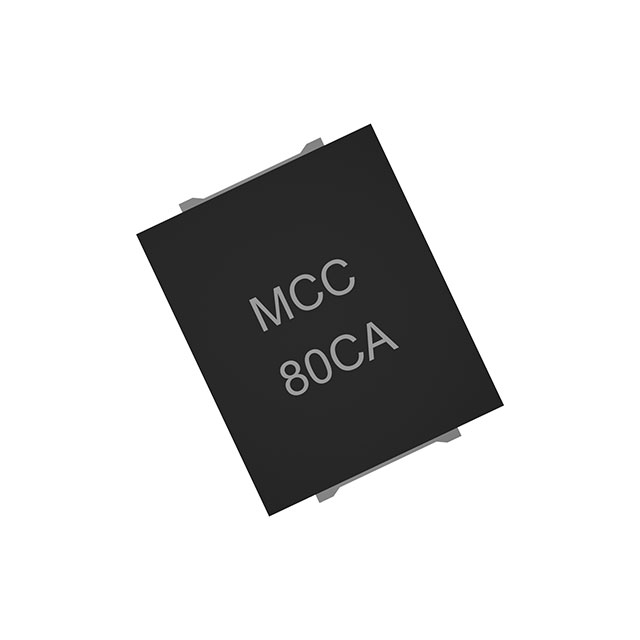

SMGJ80CA-TP
ActiveMicro Commercial Components
TVS DIODE 80VWM 130VC SMG
Deep-Dive with AI
Search across all available documentation for this part.
SMGJ80CA-TP
ActiveMicro Commercial Components
TVS DIODE 80VWM 130VC SMG
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SMGJ80CA-TP |
|---|---|
| Applications | General Purpose |
| Bidirectional Channels [custom] | 1 |
| Capacitance @ Frequency | 1500 pF |
| Current - Peak Pulse (10/1000µs) | 8/20µs |
| Current - Peak Pulse (10/1000µs) | 2.5 kA |
| Current - Peak Pulse (10/1000µs) | 2500 A |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 2-SMD, Flat Leads |
| Power Line Protection | False |
| Supplier Device Package | SMG |
| Type | Zener |
| Voltage - Breakdown (Min) [Min] | 90 V |
| Voltage - Clamping (Max) @ Ipp | 130 V |
| Voltage - Reverse Standoff (Typ) | 80 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.79 | |
| 10 | $ 2.34 | |||
| 100 | $ 1.90 | |||
| 500 | $ 1.69 | |||
| Digi-Reel® | 1 | $ 2.79 | ||
| 10 | $ 2.34 | |||
| 100 | $ 1.90 | |||
| 500 | $ 1.69 | |||
| Tape & Reel (TR) | 1500 | $ 1.44 | ||
| 3000 | $ 1.36 | |||
| 7500 | $ 1.30 | |||
Description
General part information
SMGJ80 Series
130V Clamp 2500A (2.5kA) (8/20µs) Ipp Tvs Diode Surface Mount SMG
