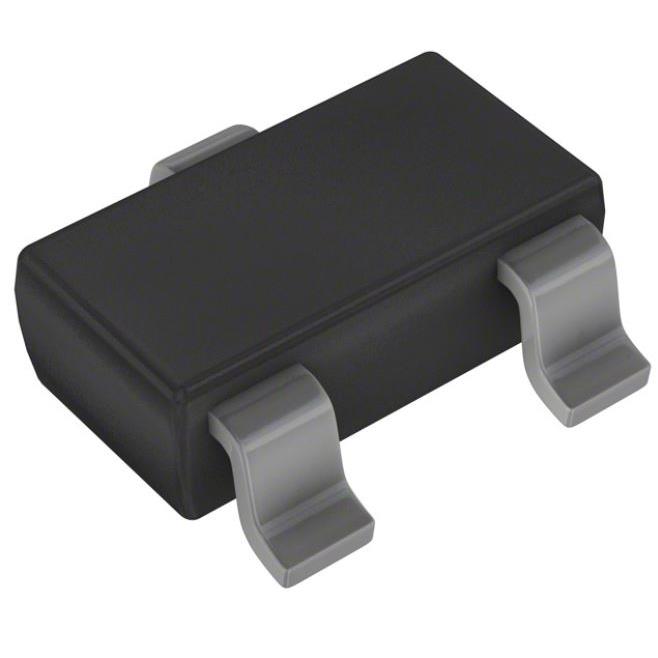

S-576Z1L1B-L3T2U
ActiveABLIC Inc.
MAGNETIC SWITCH LATCH TSOT23-3
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
S-576Z1L1B-L3T2U
ActiveABLIC Inc.
MAGNETIC SWITCH LATCH TSOT23-3
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | S-576Z1L1B-L3T2U |
|---|---|
| Current - Output (Max) [Max] | 10 mA |
| Current - Supply (Max) [Max] | 4.5 mA |
| Function | Latch |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | Push-Pull |
| Package / Case | SOT-23-3, TO-236-3, SC-59 |
| Polarization | South Pole, North Pole |
| Sensing Range | 4.1 mT |
| Supplier Device Package | TSOT-23-3S |
| Technology | Hall Effect |
| Test Condition | 25 °C |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.65 | |
| 10 | $ 1.24 | |||
| 25 | $ 0.99 | |||
| 100 | $ 0.91 | |||
| 500 | $ 0.76 | |||
| 1000 | $ 0.68 | |||
| Digi-Reel® | 1 | $ 1.65 | ||
| 10 | $ 1.24 | |||
| 25 | $ 0.99 | |||
| 100 | $ 0.91 | |||
| 500 | $ 0.76 | |||
| 1000 | $ 0.68 | |||
| Tape & Reel (TR) | 3000 | $ 0.46 | ||
Description
General part information
S-576 Series
Digital Switch Latch Push-Pull Hall Effect TSOT-23-3S
