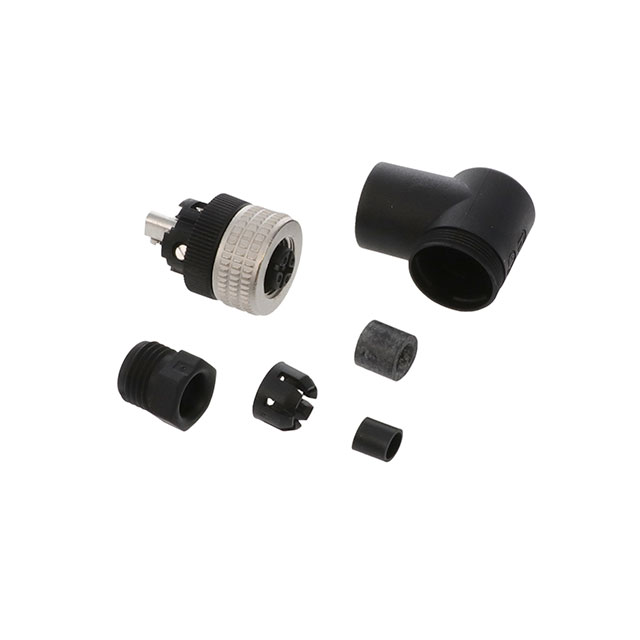

FIC-M12F5A

Active

BANNER ENGINEERING

FIELD WIREABLE FEMALE M12 EURO

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FIC-M12F5A

Active

BANNER ENGINEERING

FIELD WIREABLE FEMALE M12 EURO

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FIC-M12F5A

Applications	Industrial, Automotive
Backshell Material, Plating	Plastic
Cable Opening [Max] [diameter]	5.08 mm
Cable Opening [Max] [diameter]	0.2 in
Cable Opening [Min] [diameter]	0.16 in
Cable Opening [Min] [diameter]	4.06 mm
Color	Silver, Beige
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Current Rating (Amps)	4 A
Features	Coupling Nut, Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Plastic
Mounting Type	Free Hanging (In-Line), Right Angle
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-25 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Aluminum Alloy
Shell Size - Insert	M12-5
Shielding	Unshielded
Termination	Wire Leads
Voltage Rating	50 VAC

FIC-M Series

Part	Applications	Mounting Type	Termination	Insert Material	Ingress Protection	Contact Finish - Mating	Features	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Orientation	Connector Type	Voltage Rating	Shell Material	Backshell Material, Plating	Shell Size - Insert	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Primary Material	Shell Finish	Color	Number of Positions	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]
BANNER ENGINEERING FIC-M8M3	Automotive Industrial	Free Hanging (In-Line)	Wire Leads	Plastic	IP67 - Dust Tight Waterproof	Gold	Backshell	4 mm	5 mm	0.157 in	0.197 in	Keyed	Male Pins Receptacle	60 VAC	Zinc Aluminum Alloy	Plastic	M8-5	Unshielded	70 °C	-25 °C	4 A	Metal	Nickel	Black Silver
BANNER ENGINEERING FIC-M8M3A	Automotive Industrial	Free Hanging (In-Line) Right Angle	Wire Leads	Plastic	IP67 - Dust Tight Waterproof	Gold	Backshell	4 mm	5 mm	0.157 in	0.197 in	Keyed	Male Pins Receptacle	60 VAC	Zinc Aluminum Alloy	Plastic	M8-3	Unshielded	70 °C	-25 °C	4 A	Metal	Nickel	Beige Silver
BANNER ENGINEERING FIC-M12M4	Automotive Industrial	Free Hanging (In-Line)	Wire Leads	Plastic	IP67 - Dust Tight Waterproof	Gold	Backshell	4 mm	5 mm	0.157 in	0.197 in	Keyed	Male Pins Receptacle	250 VAC	Zinc Aluminum Alloy	Plastic	M12-4	Unshielded	90 °C	-25 °C	4 A	Metal	Nickel	Black Silver	4
BANNER ENGINEERING FIC-M12F4	Automotive Industrial	Free Hanging (In-Line)	Wire Leads	Plastic	IP67 - Dust Tight Waterproof	Gold	Backshell Coupling Nut	4 mm	5 mm	0.157 in	0.197 in	Keyed	Female Sockets Plug	250 VAC	Zinc Aluminum Alloy	Plastic	M12-4	Unshielded	90 °C	-25 °C	4 A	Metal	Nickel	Black Silver	4
BANNER ENGINEERING FIC-M12M5	Automotive Industrial	Free Hanging (In-Line)	Wire Leads	Plastic	IP67 - Dust Tight Waterproof	Gold	Backshell	4 mm	5 mm	0.157 in	0.197 in	Keyed	Male Pins Receptacle	250 VAC	Zinc Aluminum Alloy	Plastic	M12-5	Unshielded	90 °C	-25 °C	4 A	Metal	Nickel	Black Silver
BANNER ENGINEERING FIC-M12F5A	Automotive Industrial	Free Hanging (In-Line) Right Angle	Wire Leads	Plastic	IP67 - Dust Tight Waterproof	Gold	Backshell Coupling Nut					Keyed	Female Sockets Plug	50 VAC	Zinc Aluminum Alloy	Plastic	M12-5	Unshielded	90 °C	-25 °C	4 A	Metal	Nickel	Beige Silver		0.16 in	4.06 mm	5.08 mm	0.2 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 30.00
Newark	Each	1	$ 30.00

Description

General part information

FIC-M Series

5 Position Circular Connector Plug, Female Sockets Wire Leads
