21-14-24

Active

Cinch Connectivity Solutions Trompeter

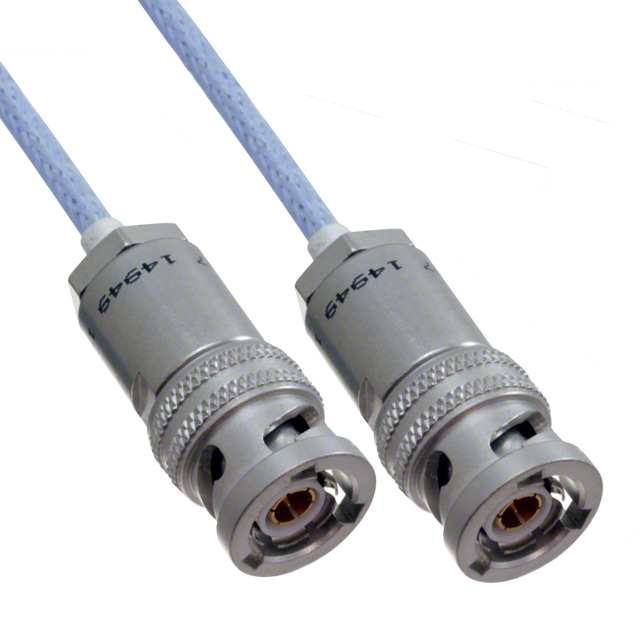

CBL ASSY TRB PLUG TO PLUG 24"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

21-14-24

Active

Cinch Connectivity Solutions Trompeter

CBL ASSY TRB PLUG TO PLUG 24"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	21-14-24

1st Connector	TRB Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	TRB Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	Twinaxial
Color	Blue
Features	Shielded
Frequency - Max [Max]	500 GHz
Length	24 "
Length	609.6 mm
Overall Impedance	78 Ohms
Qualification	MIL-STD-1553B
Style	TRB to TRB

21-14 Series

Part	1st Connector Mounting Type	Cable Type	1st Contact Gender	2nd Contact Gender	Length	Length	Color	Features	Qualification	Overall Impedance	1st Connector	Frequency - Max [Max]	Style	2nd Connector Mounting Type	2nd Connector	Length	Length [x]	Length [x]	Length [x]
Cinch Connectivity Solutions Trompeter 21-14-12	Free Hanging (In-Line)	Twinaxial	Male	Male	12 "	304.8 mm	Blue	Shielded	MIL-STD-1553B	78 Ohms	TRB Plug	500 GHz	TRB to TRB	Free Hanging (In-Line)	TRB Plug
Cinch Connectivity Solutions Trompeter 21-14-72	Free Hanging (In-Line)	Twinaxial	Male	Male	72 in	1.8 m	Blue	Shielded	MIL-STD-1553B	78 Ohms	TRB Plug	500 GHz	TRB to TRB	Free Hanging (In-Line)	TRB Plug	6 ft
Cinch Connectivity Solutions Trompeter 21-14-M2.5	Free Hanging (In-Line)	Twinaxial	Male	Male	98.4 in	2.5 m	Blue	Shielded	MIL-STD-1553B	78 Ohms	TRB Plug	500 GHz	TRB to TRB	Free Hanging (In-Line)	TRB Plug	8.2 '
Cinch Connectivity Solutions Trompeter 21-14-120	Free Hanging (In-Line)	Twinaxial	Male	Male	10 ft	3 m	Blue	Shielded	MIL-STD-1553B	78 Ohms	TRB Plug	500 GHz	TRB to TRB	Free Hanging (In-Line)	TRB Plug	10 '
Cinch Connectivity Solutions Trompeter 21-14-24	Free Hanging (In-Line)	Twinaxial	Male	Male	24 "	609.6 mm	Blue	Shielded	MIL-STD-1553B	78 Ohms	TRB Plug	500 GHz	TRB to TRB	Free Hanging (In-Line)	TRB Plug
Cinch Connectivity Solutions Trompeter 21-14-M5.0	Free Hanging (In-Line)	Twinaxial	Male	Male	196.9 in	5 m	Blue	Shielded	MIL-STD-1553B	78 Ohms	TRB Plug	500 GHz	TRB to TRB	Free Hanging (In-Line)	TRB Plug	16.4 ft
Cinch Connectivity Solutions Trompeter 21-14-M3.5	Free Hanging (In-Line)	Twinaxial	Male	Male	137.8 "	3.5 m	Blue	Shielded	MIL-STD-1553B	78 Ohms	TRB Plug	500 GHz	TRB to TRB	Free Hanging (In-Line)	TRB Plug	11.5 ft
Cinch Connectivity Solutions Trompeter 21-14-M1.5	Free Hanging (In-Line)	Twinaxial	Male	Male	59.1 in	1.5 m	Blue	Shielded	MIL-STD-1553B	78 Ohms	TRB Plug	500 GHz	TRB to TRB	Free Hanging (In-Line)	TRB Plug	4.9 ft
Cinch Connectivity Solutions Trompeter 21-14-M4.5	Free Hanging (In-Line)	Twinaxial	Male	Male			Blue	Shielded	MIL-STD-1553B	78 Ohms	TRB Plug	500 GHz	TRB to TRB	Free Hanging (In-Line)	TRB Plug		14.8 ft	177.2 in	4.5 m
Cinch Connectivity Solutions Trompeter 21-14-M3.0	Free Hanging (In-Line)	Twinaxial	Male	Male	118.1 in	3 m	Blue	Shielded	MIL-STD-1553B	78 Ohms	TRB Plug	500 GHz	TRB to TRB	Free Hanging (In-Line)	TRB Plug	9.8 '

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 233.81
		10	$ 183.17
		25	$ 167.19
		50	$ 156.43

Description

General part information

21-14 Series

Cable Assembly Coaxial TRB to TRB Twinaxial 24.00" (609.60mm)
