1218805

Active

SICK, Inc.

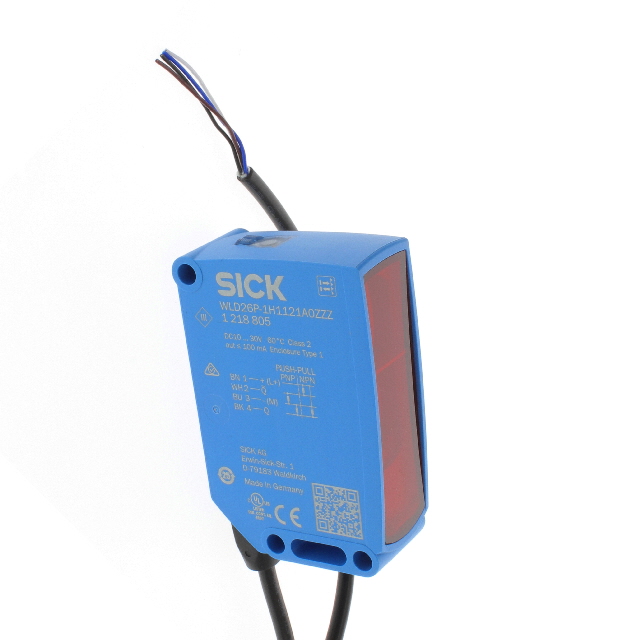

SEN 0.25-19M IO-LINK PUSH/PULL

Search across all available documentation for this part.

Active

SICK, Inc.

SEN 0.25-19M IO-LINK PUSH/PULL

Technical Specifications

Parameters and characteristics for this part

Specification	1218805

Cable Length	78.74 in
Cable Length	2 m
Connection Method	Cable
Ingress Protection	IP69K, IP67, IP66
Light Source	Red LED
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-40 °C
Output Configuration	NPN/PNP, Dark-ON/Light-ON, Selectable
Response Time	500 µs
Sensing Distance [Max]	19 m
Sensing Distance [Max]	748.031 in
Sensing Distance [Min]	9.843 "
Sensing Distance [Min]	250 mm
Sensing Method	Retroreflective
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

Part	Response Time	Cable Length	Cable Length	Light Source	Voltage - Supply [Max]	Voltage - Supply [Min]	Sensing Method	Ingress Protection	Output Configuration	Operating Temperature [Min]	Operating Temperature [Max]	Sensing Distance [Min]	Sensing Distance [Max]	Sensing Distance [Min]	Sensing Distance [Max]	Connection Method
SICK, Inc. 1218805	500 µs	78.74 in	2 m	Red LED	30 VDC	10 VDC	Retroreflective	IP66 IP67 IP69K	Dark-ON/Light-ON NPN/PNP Selectable	-40 °C	60 °C	9.843 "	19 m	250 mm	748.031 in	Cable

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Retroreflective Optical Sensor 9.843" ~ 748.031" (250mm ~ 19m) NPN/PNP - Dark-ON/Light-ON - Selectable
