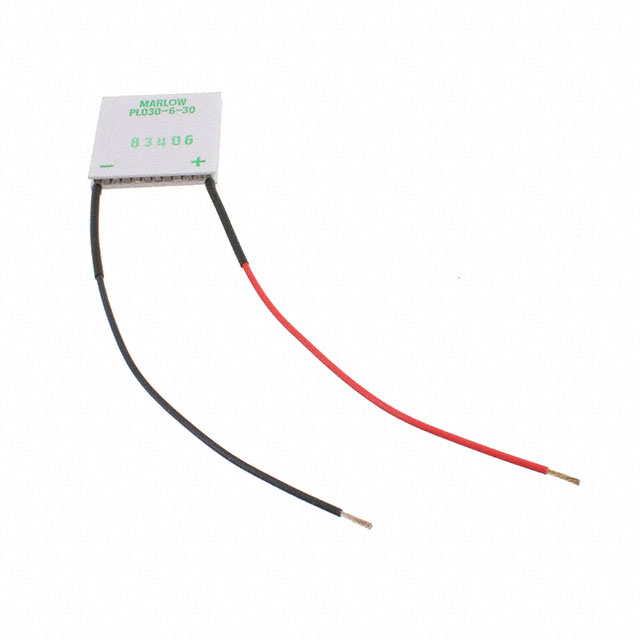

PL030-6-30-01

Active

Marlow Industries, Inc.

TEM 29.7X29.7X3.81MM

Search across all available documentation for this part.

Active

Marlow Industries, Inc.

TEM 29.7X29.7X3.81MM

Technical Specifications

Parameters and characteristics for this part

Part	Qmax @ Th	Voltage - Max [Max]	Features	Resistance	Number of Stages	Height [z]	Delta Tmax @ Th	Current - Max [Max]	Size / Dimension [x]	Size / Dimension [y]
Marlow Industries, Inc. PL030-6-30-01LS	30 W	8.2 V	Lapped Lead Wires Sealed	1.2 Ohms	1	3.81 mm	66 °C	5.6 A	29.7 mm	29.7 mm
Marlow Industries, Inc. PL030-6-30-01	30 W	8.2 V	Lead Wires	1.2 Ohms	1	4.06 mm	66 °C	5.6 A	29.7 mm	29.7 mm
Marlow Industries, Inc. PL030-6-30-01L	30 W	8.2 V	Lapped Lead Wires	1.2 Ohms	1	3.81 mm	66 °C	5.6 A	29.7 mm	29.7 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	50	$ 31.39

General part information

Peltier Module 30.0W @ 27°C 5.6 A 85°C

Technical documentation and resources

No documents available
