7261-7PG-300

Active

Conxall/Switchcraft

CONN RCPT MALE 7POS GOLD SOLDER

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT MALE 7POS GOLD SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	7261-7PG-300

Applications	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Bayonet Lock
Ingress Protection	Weathertight
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	7
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Termination	Circuit Board, Solder

Part	Applications	Insert Material	Ingress Protection	Contact Material	Mounting Feature	Backshell Material, Plating	Connector Type	Mounting Type	Orientation	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Color	Termination	Material Flammability Rating	Number of Positions	Fastening Type	Current Rating (Amps)	Contact Finish - Mating	Primary Material
Conxall/Switchcraft 7261-7PG-300	Automotive Communication Systems Instrumentation	Thermoplastic	Weathertight	Copper Alloy	Bulkhead - Front Side Nut	Nylon Polyamide (PA)	Male Pins Receptacle	Panel Mount Right Angle Through Hole	Keyed	85 °C	-40 °C	Unshielded	Black	Circuit Board Solder	UL94 V-0	7	Bayonet Lock	Varies by Wire Gauge	Gold	Plastic

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

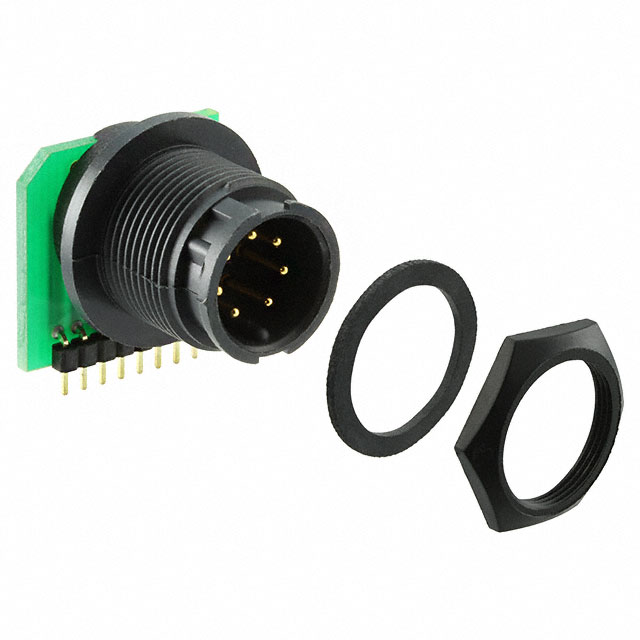

7 Position Circular Connector Receptacle, Male Pins Circuit Board, Solder
