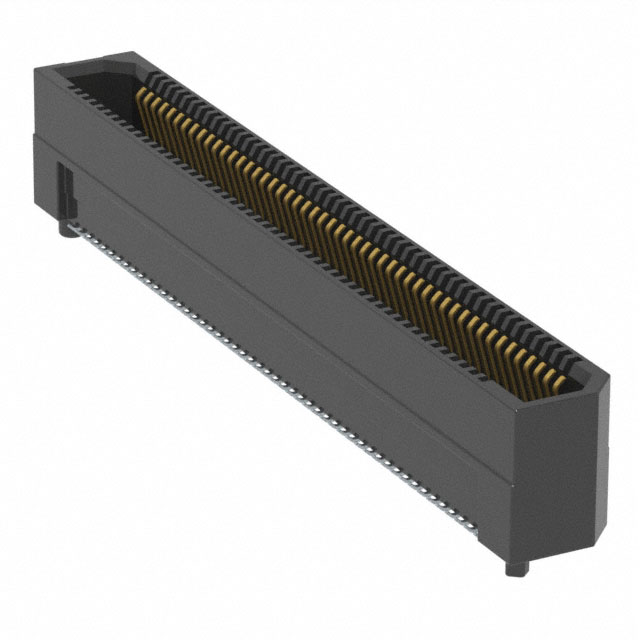

ER8-100S-0.8SV-7H
ActiveHirose Electric USA, Inc.
CONN RCPT 100POS SMD GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ER8-100S-0.8SV-7H |
|---|---|
| Connector Type | Receptacle, Outer Shroud Contacts |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Features | Board Guide |
| Height Above Board [z] | 0.285 in |
| Height Above Board [z] | 7.24 mm |
| Mated Stacking Heights [z] | 12 mm, 9 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 100 |
| Number of Rows | 2 |
| Pitch [x] | 0.8 mm |
| Pitch [x] | 0.031 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 8.05 | |
| 10 | $ 7.28 | |||
| 25 | $ 6.87 | |||
| 50 | $ 6.71 | |||
| 100 | $ 6.37 | |||
| Tape & Reel (TR) | 300 | $ 4.89 | ||
| 600 | $ 4.56 | |||
| 900 | $ 4.39 | |||
| 1500 | $ 4.18 | |||
| 2100 | $ 4.06 | |||
Description
General part information
ER8-100S Series
100 Position Connector Receptacle, Outer Shroud Contacts Surface Mount Gold
