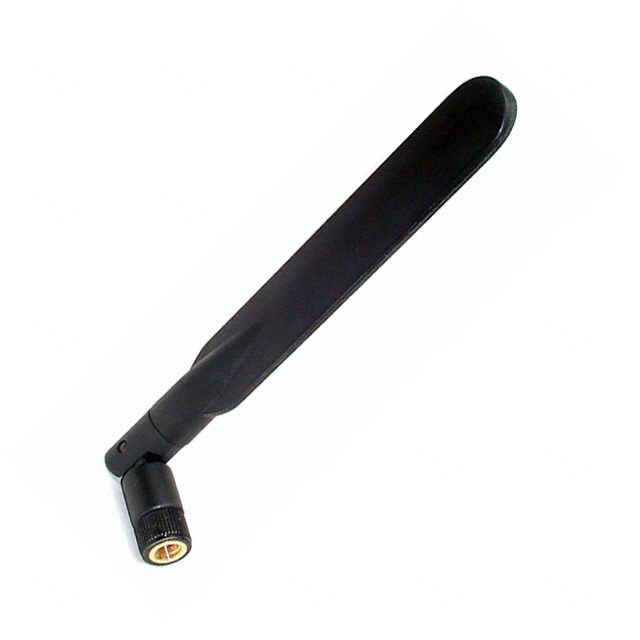

T614AH-2.4/4.9/5.X-S
ActiveNearson Inc.
RF ANT 2.4GHZ/4.9GHZ WHIP TILT
Deep-Dive with AI
Search across all available documentation for this part.
T614AH-2.4/4.9/5.X-S
ActiveNearson Inc.
RF ANT 2.4GHZ/4.9GHZ WHIP TILT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | T614AH-2.4/4.9/5.X-S |
|---|---|
| Antenna Type | Tilt, Whip |
| Frequency (Center/Band) | 2.4 GHz, 5.8 GHz, 4.9 GHz, 5.2 GHz |
| Frequency Group | 4 GHz |
| Frequency Group [Max] | 3 GHz |
| Frequency Group [Min] | 2 GHz |
| Frequency Range [Max] | 2.5 GHz, 5.35 GHz, 5.85 GHz |
| Frequency Range [Min] | 2.4 GHz, 4.9 GHz, 5.725 GHz |
| Gain | 5 dBi, 4 dBi, 4.5 dBi |
| Height (Max) [Max] | 159.6 mm |
| Height (Max) [Max] | 6.283 in |
| Mounting Type | Connector Mount |
| Number of Bands | 4 |
| Termination | RP-SMA Male |
| VSWR | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 50 | $ 13.72 | |
Description
General part information
T614AH Series
RF ANTENNA Whip, Tilt RP-SMA Male Connector Mount
Documents
Technical documentation and resources
No documents available
