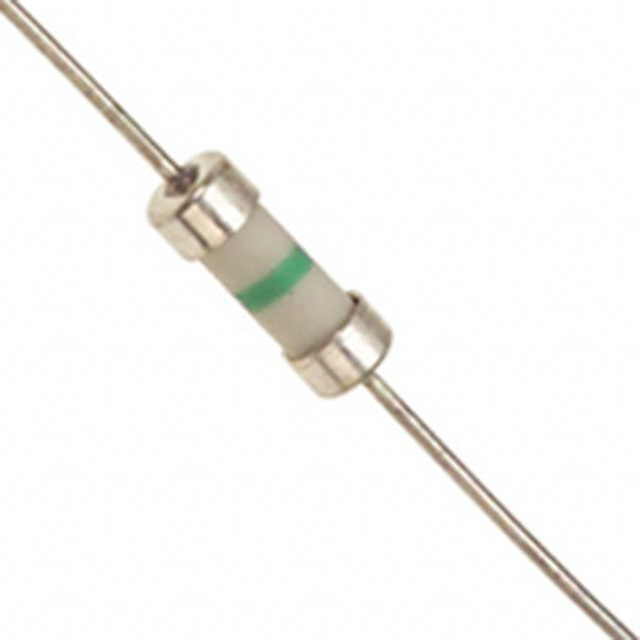

0242.080HAT1

Active

Littelfuse/Commercial Vehicle Products

ELECTRIC FUSE, 0.08A, 250VAC, 250VDC, 4000A (IR), THROUGH HOLE, ROHS COMPLIANT

Search across all available documentation for this part.

Active

Littelfuse/Commercial Vehicle Products

ELECTRIC FUSE, 0.08A, 250VAC, 250VDC, 4000A (IR), THROUGH HOLE, ROHS COMPLIANT

Technical Specifications

Parameters and characteristics for this part

Specification	0242.080HAT1

Applications	Hazardous Locations
Breaking Capacity @ Rated Voltage	4 kA
Current Rating (Amps)	80 mA
DC Cold Resistance	8.19 Ohms
Features	Intrinsically Safe
Fuse Type	Cartridge
Melting I˛t	0.000214
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Axial
Response Time	Fast Blow
Size / Dimension [diameter]	3.02 mm
Size / Dimension [diameter]	0.119 "
Size / Dimension [x]	0.331 in
Size / Dimension [x]	8.4 mm
Voltage Rating - AC	250 VAC
Voltage Rating - DC	250 V

FUSE 250V BARRIER FUSE AMMO .080A

Part	DC Cold Resistance	Melting I˛t	Mounting Type	Fuse Type	Response Time	Applications	Current Rating (Amps)	Features	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Breaking Capacity @ Rated Voltage	Voltage Rating - DC	Voltage Rating - AC
Littelfuse/Commercial Vehicle Products 0242.080HAT1	8.19 Ohms	0.000214	Through Hole	Cartridge	Fast Blow	Hazardous Locations	80 mA	Intrinsically Safe	3.02 mm	0.119 "	0.331 in	8.4 mm	125 °C	-40 °C	Axial	4 kA	250 V	250 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

FUSE 250V BARRIER FUSE AMMO .080A
