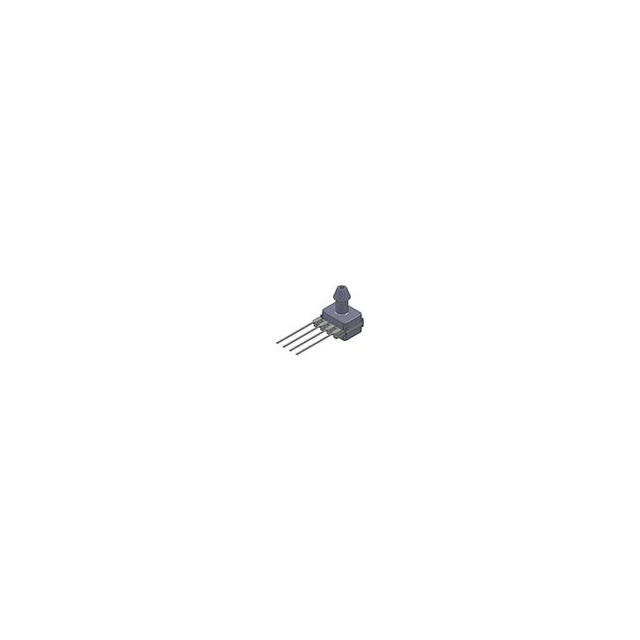

ELVH-100G-HJJD-C-NAA5

Active

Amphenol All Sensors Corporation

SENSOR 100.08PSIG

Search across all available documentation for this part.

Active

Amphenol All Sensors Corporation

SENSOR 100.08PSIG

Technical Specifications

Parameters and characteristics for this part

Part	Operating Pressure	Operating Pressure	Termination Style	Port Style	Mounting Type	Features	Accuracy	Pressure Type	Output Type	Package / Case	Package / Case	Package / Case	Voltage - Supply [Min]	Voltage - Supply [Max]	Port Size	Port Size	Port Size	Supplier Device Package	Output	Maximum Pressure [Max]	Maximum Pressure [Max]
Amphenol All Sensors Corporation ELVH-100G-HRRD-C-NAA5	689.48 kPa	100 PSI	PC Pin	Barbed	Through Hole	Temperature Compensated	0.25 %	Gauge	Analog Voltage	8-DIP Dual Ports Same Side	12.8 mm	0.504 in	2.7 V	5.5 V	Dual Male Tube	0.06 "	1.6 mm	8-DIP
Amphenol All Sensors Corporation ELVH-100G-HKNJ-C-N2A4	689.48 kPa	100 PSI	J Lead	Needle	Surface Mount	Temperature Compensated	0.25 %	Gauge	I2C	8-SMD J-Lead Top Port			2.7 V	5.5 V	Male Tube	0.11 "	2.8 mm		14 b
Amphenol All Sensors Corporation ELVH-100G-HJJD-C-NAA5	689.48 kPa	100 PSI	PC Pin		Through Hole	Temperature Compensated	0.25 %	Gauge	Analog Voltage	8-DIP			2.7 V	5.5 V						250.05 PSI	1724 kPa

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 44.82

General part information

Pressure Sensor 100PSI (689.48kPa) Gauge 8-DIP (0.524", 13.30mm)
