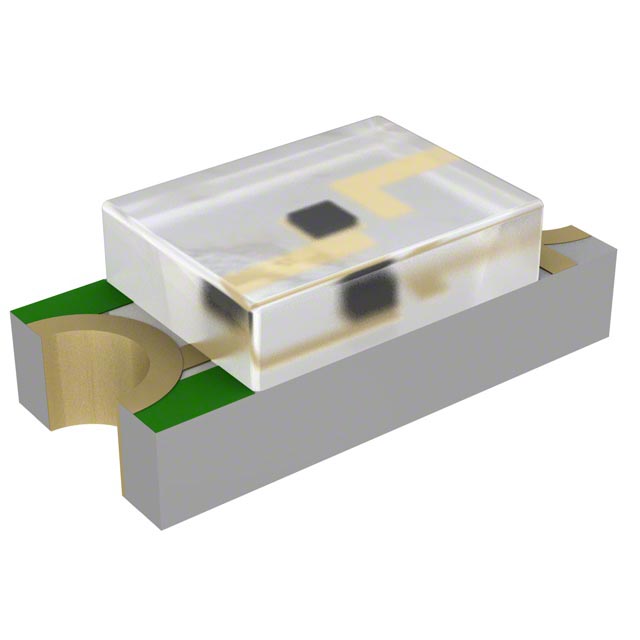

IR15-21C/TR8
ActiveEverlight Electronics Co Ltd
INFRARED LED, 2MM, 1-ELEMENT, 940NM, ROHS COMPLIANT, PLASTIC, SMD, 2 PIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
IR15-21C/TR8
ActiveEverlight Electronics Co Ltd
INFRARED LED, 2MM, 1-ELEMENT, 940NM, ROHS COMPLIANT, PLASTIC, SMD, 2 PIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | IR15-21C/TR8 |
|---|---|
| Current - DC Forward (If) (Max) | 65 mA |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 C |
| Operating Temperature [Min] | -25 °C |
| Orientation | Top View |
| Package / Case | 1206 (3216 Metric) |
| Radiant Intensity (Ie) Min @ If [Min] | 0.2 mW/sr |
| Type | Infrared (IR) |
| Viewing Angle | 160 ° |
| Wavelength | 940 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.48 | |
| 10 | $ 0.30 | |||
| 100 | $ 0.17 | |||
| 1000 | $ 0.13 | |||
| Digi-Reel® | 1 | $ 0.48 | ||
| 10 | $ 0.30 | |||
| 100 | $ 0.17 | |||
| 1000 | $ 0.13 | |||
| Tape & Reel (TR) | 3000 | $ 0.12 | ||
| 6000 | $ 0.11 | |||
| 15000 | $ 0.10 | |||
| 30000 | $ 0.10 | |||
| 75000 | $ 0.10 | |||
Description
General part information
IR15-21 Series
Infrared (IR) Emitter 940nm 1.2V 65mA 0.2mW/sr @ 20mA 160° 1206 (3216 Metric)
