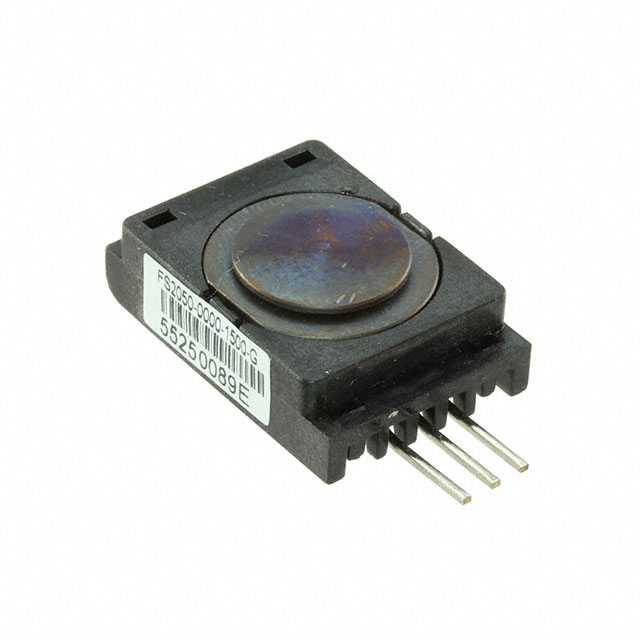

FS2050-000X-1500-G

Active

TE Connectivity Measurement Specialties

SENSOR FORCE LOAD CELL 3.3LBS

Search across all available documentation for this part.

Active

TE Connectivity Measurement Specialties

SENSOR FORCE LOAD CELL 3.3LBS

Technical Specifications

Parameters and characteristics for this part

Specification	FS2050-000X-1500-G

Accuracy	1 %
Actuator Style/Size	Round
Actuator Style/Size	12.2 mm
Actuator Type	Plunger
Compensated Temperature [Max]	50 °C
Compensated Temperature [Min]	0 °C
Includes	Sensor
Operating Force	3.3 lbs
Operating Force	1500 gf
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Output [Max]	4 V
Output [Min]	1 V
Sensor Type	Load Cell
Voltage - Supply [Max]	12 V
Voltage - Supply [Min]	3.3 V

Part	Actuator Type	Includes	Operating Force	Operating Force	Actuator Style/Size	Actuator Style/Size	Accuracy	Compensated Temperature [Min]	Compensated Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	Output [Min]	Output [Max]	Sensor Type
TE Connectivity Measurement Specialties FS2050-000X-1500-G	Plunger	Sensor	3.3 lbs	1500 gf	Round	12.2 mm	1 %	0 °C	50 °C	70 °C	0 °C	12 V	3.3 V	1 V	4 V	Load Cell

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SENSOR FORCE LOAD CELL 3.3LBS

Technical documentation and resources

No documents available
