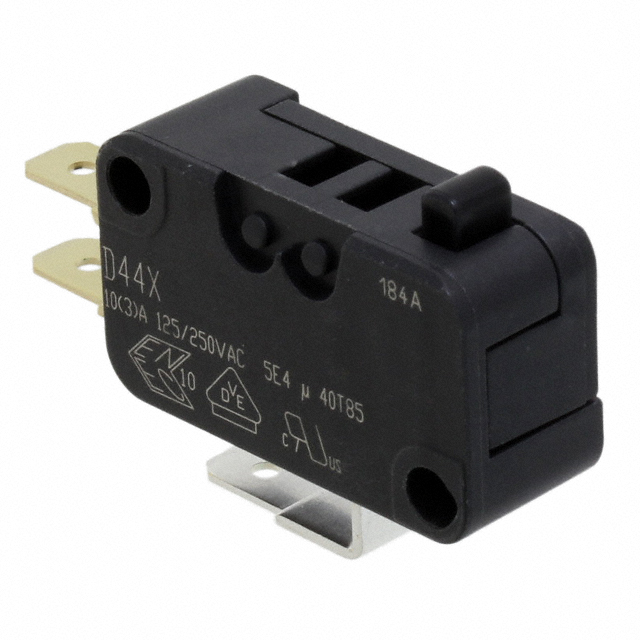

D449-R1AA

Active

ZF Electronics

SWITCH SNAP ACTION SPDT 10A 250V

Search across all available documentation for this part.

Active

ZF Electronics

SWITCH SNAP ACTION SPDT 10A 250V

Technical Specifications

Parameters and characteristics for this part

Part	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Pretravel	Pretravel	Electrical Life	Operating Force	Voltage Rating - AC	Termination Style	Overtravel	Overtravel	Mounting Type	Switch Function	Differential Travel	Differential Travel	Features	Actuator Type	Circuit	Operating Position	Operating Position	Release Force	Pretravel
ZF Electronics D449-R1RA-G2	10 A	85 °C	-40 °C	0.047 in	1.2 mm	50000 Cycles	76 gf	250 V	Quick Connect - 0.187" (4.7mm)	0.039 in	1 mm	Chassis Mount	On-Mom	0.016 "	0.4 mm	Explosion Proof	Lever Roller	SPDT
ZF Electronics D449-R1AA	10 A	85 °C	-40 °C	0.047 in	1.2 mm	50000 Cycles	76 gf	250 V	Quick Connect - 0.187" (4.7mm)	0.051 in	1.3 mm	Chassis Mount	On-Mom	0.012 "	0.3 mm	Explosion Proof	Round (Pin Plunger)	SPDT	0.579 in	14.7 mm
ZF Electronics D449-R1RD-G2	10 A	85 °C	-40 °C		0.125 in	50000 Cycles	41 gf	250 V	Quick Connect - 0.187" (4.7mm)	0.087 in	2.2 mm	Chassis Mount	On-Mom	0.031 "	0.8 mm	Explosion Proof	Lever Roller	SPDT			8.158 gf	3.2 mm
ZF Electronics D449-R1MD-G2	10 A	85 °C	-40 °C	0.2 in	5.1 mm	50000 Cycles		250 V	Quick Connect - 0.187" (4.7mm)	0.141 in	3.6 mm	Chassis Mount	On-Mom	0.05 in	1.3 mm	Explosion Proof	Lever Straight	SPDT	0.6 in	15.2 mm	6.118 gf

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Switch SPDT Chassis Mount
