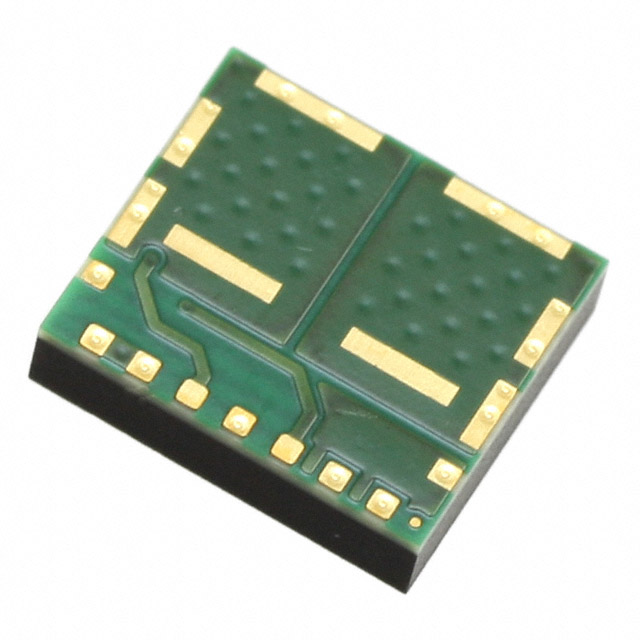

PI2161-01-LGIZ
ObsoleteVicor Corporation
IC PWR SWITCH N-CHAN 1:1 17LGA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PI2161-01-LGIZ
ObsoleteVicor Corporation
IC PWR SWITCH N-CHAN 1:1 17LGA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PI2161-01-LGIZ |
|---|---|
| Current - Output (Max) [Max] | 12 A |
| Features | Latch Function |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Low Side |
| Output Type | N-Channel |
| Package / Case | 17-LGA |
| Ratio - Input:Output [custom] | 1:1 |
| Rds On (Typ) | 8.5 mOhm |
| Supplier Device Package | 17-LGA (7x8) |
| Switch Type | General Purpose |
| Voltage - Load [Max] | 10.5 V |
| Voltage - Load [Min] | 8.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
PI2161 Series
Power Switch/Driver 1:1 N-Channel 12A 17-LGA (7x8)
Documents
Technical documentation and resources
