PL3455ACP-201

Active

Cinch Connectivity Solutions Trompeter

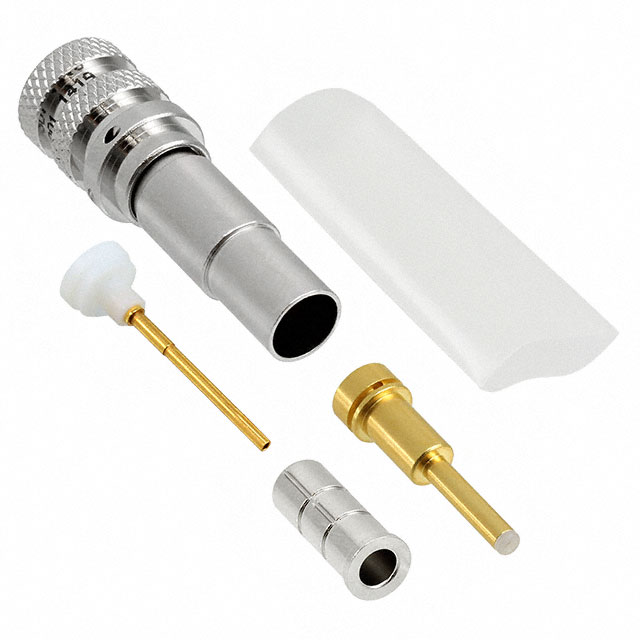

CONN 1553 TWIN PLUG STR CRIMP

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Trompeter

CONN 1553 TWIN PLUG STR CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	PL3455ACP-201

Body Finish	Nickel
Body Material	Brass
Cable Group	M17/176-00002
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	1553, Twinaxial
Connector Type	Male Pin (Concentric), Female Socket, Plug
Contact Termination	Crimp
Frequency - Max [Max]	2 MHz
Housing Color	Silver
Impedance	Non-Constant
Includes	1 Heat Shrink, 1 Bushing, 1 Connector
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	900 V

Part	Number of Ports	Contact Termination	Impedance	Center Contact Material	Includes	Shield Termination	Mounting Type	Cable Group	Frequency - Max [Max]	Voltage Rating	Housing Color	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Center Contact Plating	Body Material	Body Finish	Connector Style
Cinch Connectivity Solutions Trompeter PL3455ACP-201	1	Crimp	Non-Constant	Beryllium Copper	1 Bushing 1 Connector 1 Heat Shrink	Crimp	Free Hanging (In-Line)	M17/176-00002	2 MHz	900 V	Silver	125 °C	-65 ░C	Female Socket Male Pin (Concentric) Plug	Gold	Brass	Nickel	1553 Twinaxial
Cinch Connectivity Solutions Trompeter PL3455ACS-303	1	Crimp	Non-Constant	Beryllium Copper	1 Bushing 1 Connector 1 Heat Shrink	Crimp	Free Hanging (In-Line)	Raychem 7528A5314	2 MHz	900 V	Silver	125 °C	-65 ░C	Female Socket Male Pin Plug	Gold	Brass	Nickel	1553 Twinaxial
Cinch Connectivity Solutions Trompeter PL3455ACP-222	1	Crimp	Non-Constant	Beryllium Copper	1 Bushing 1 Connector 1 Heat Shrink	Crimp	Free Hanging (In-Line)	Raychem 10613	2 MHz	900 V	Silver	125 °C	-65 ░C	Female Socket Male Pin (Concentric) Plug	Gold	Brass	Nickel	1553 Twinaxial
Cinch Connectivity Solutions Trompeter PL3455ACP-303	1	Crimp	Non-Constant	Beryllium Copper	1 Bushing 1 Connector 1 Heat Shrink	Crimp	Free Hanging (In-Line)	Raychem 7528A5314	2 MHz	900 V	Silver	125 °C	-65 ░C	Female Socket Male Pin (Concentric) Plug	Gold	Brass	Nickel	1553 Twinaxial

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1553, Twinaxial Connector Plug, Female Socket, Male Pin (Concentric) Non-Constant Free Hanging (In-Line) Crimp
