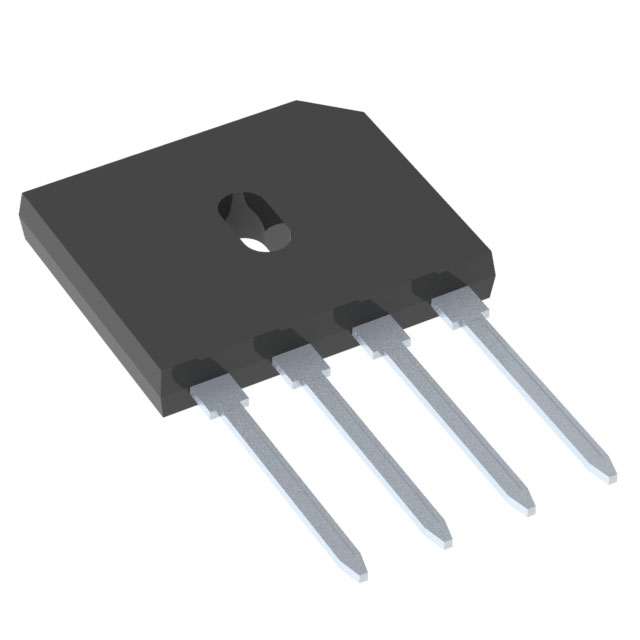

GBU2507
ActiveTaiwan Semiconductor Corporation
25A, 1000V, STANDARD BRIDGE RECTIFIER
Deep-Dive with AI
Search across all available documentation for this part.
GBU2507
ActiveTaiwan Semiconductor Corporation
25A, 1000V, STANDARD BRIDGE RECTIFIER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | GBU2507 |
|---|---|
| Current - Average Rectified (Io) | 25 A |
| Current - Reverse Leakage @ Vr | 10 çA |
| Diode Type | Single Phase |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case [custom] | 4-ESIP, GBU |
| Supplier Device Package | GBU |
| Technology | Standard |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V |
| Voltage - Peak Reverse (Max) [Max] | 1000 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 20 | $ 1.16 | |
| 40 | $ 1.14 | |||
| 100 | $ 0.90 | |||
| 500 | $ 0.76 | |||
| 1000 | $ 0.62 | |||
| 2000 | $ 0.59 | |||
Description
General part information
GBU2507 Series
Bridge Rectifier Single Phase Standard 1 kV Through Hole GBU
