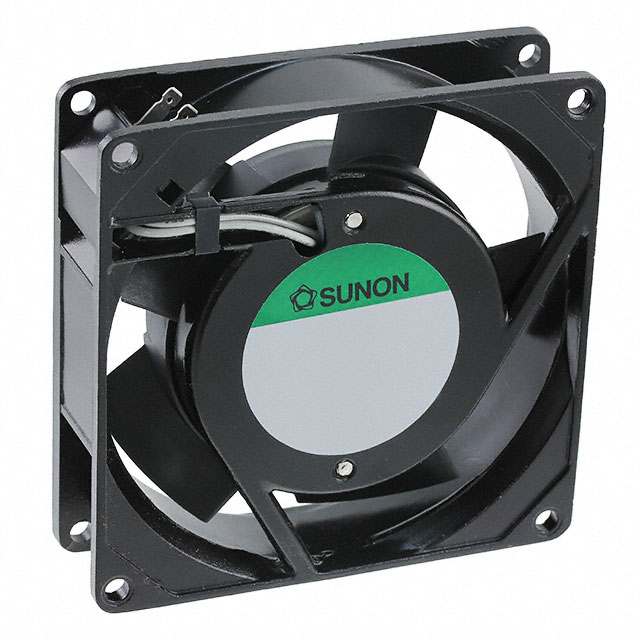

SF11592A-1092HST.GN

Active

Sunon Fans

FAN AXIAL 92X25MM 115VAC

Search across all available documentation for this part.

Active

Sunon Fans

FAN AXIAL 92X25MM 115VAC

Technical Specifications

Parameters and characteristics for this part

Specification	SF11592A-1092HST.GN

Air Flow	1.01 m³/min
Air Flow	36 CFM
Approval Agency	TUV, cUR, UL, CE
Bearing Type	Sleeve
Current Rating (Amps)	110 mA
Fan Type	Tubeaxial
Material - Blade	Polybutylene Terephthalate (PBT)
Material - Frame	Aluminum
Noise	39 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	12 W
RPM	2750 RPM
Size / Dimension [x]	91.5 mm
Size / Dimension [y]	91.5 mm
Static Pressure	44.8 Pa
Static Pressure	0.18 in H2O
Termination	2 Terminals
Voltage - Rated	115 VAC
Voltage Range [Max]	125 VAC
Voltage Range [Min]	85 VAC
Weight	0.617 lb
Weight	280 g
Width [x]	25.5 mm

Part	Material - Frame	Weight	Weight	Approval Agency	Power (Watts)	Air Flow	Air Flow	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [y]	Current Rating (Amps)	Width [x]	Noise	Bearing Type	RPM	Voltage - Rated	Voltage Range [Max]	Voltage Range [Min]	Static Pressure	Static Pressure	Fan Type	Termination	Material - Blade	Lifetime @ Temp.
Sunon Fans SF11592A-1092HST.GN	Aluminum	0.617 lb	280 g	CE cUR TUV UL	12 W	1.01 m³/min	36 CFM	70 °C	70 °C	-10 °C	-10 °C	91.5 mm	91.5 mm	110 mA	25.5 mm	39 dB(A)	Sleeve	2750 RPM	115 VAC	125 VAC	85 VAC	44.8 Pa	0.18 in H2O	Tubeaxial	2 Terminals	Polybutylene Terephthalate (PBT)
Sunon Fans SF11592A-1092MBL.GN	Aluminum	0.617 lb	280 g	CE cUR TUV UL	6 W	0.784 m³/min	28 CFM					91.5 mm	91.5 mm	60 mA	25.5 mm	33 dB(A)	Ball	2100 RPM	115 VAC			27.4 Pa	0.11 in H2O	Tubeaxial	2 Wire Leads		42000 Hrs

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 115VAC Square - 91.5mm L x 91.5mm H Sleeve 36.0 CFM (1.01m³/min) 2 Terminals
